実例: bpmn-editorial-publication
実例: bpmn-editorial-publication
コピーして貼るか、ファイルに保存して渡す。ネットにつながらない環境には「全部入り」を 1 つ渡せば足りる。
このパネルの中身を、URL の先にあるファイルの中身まで含めて 1 つにまとめた Markdown — 大きいのでファイルで渡す（コピーは 32KB まで）

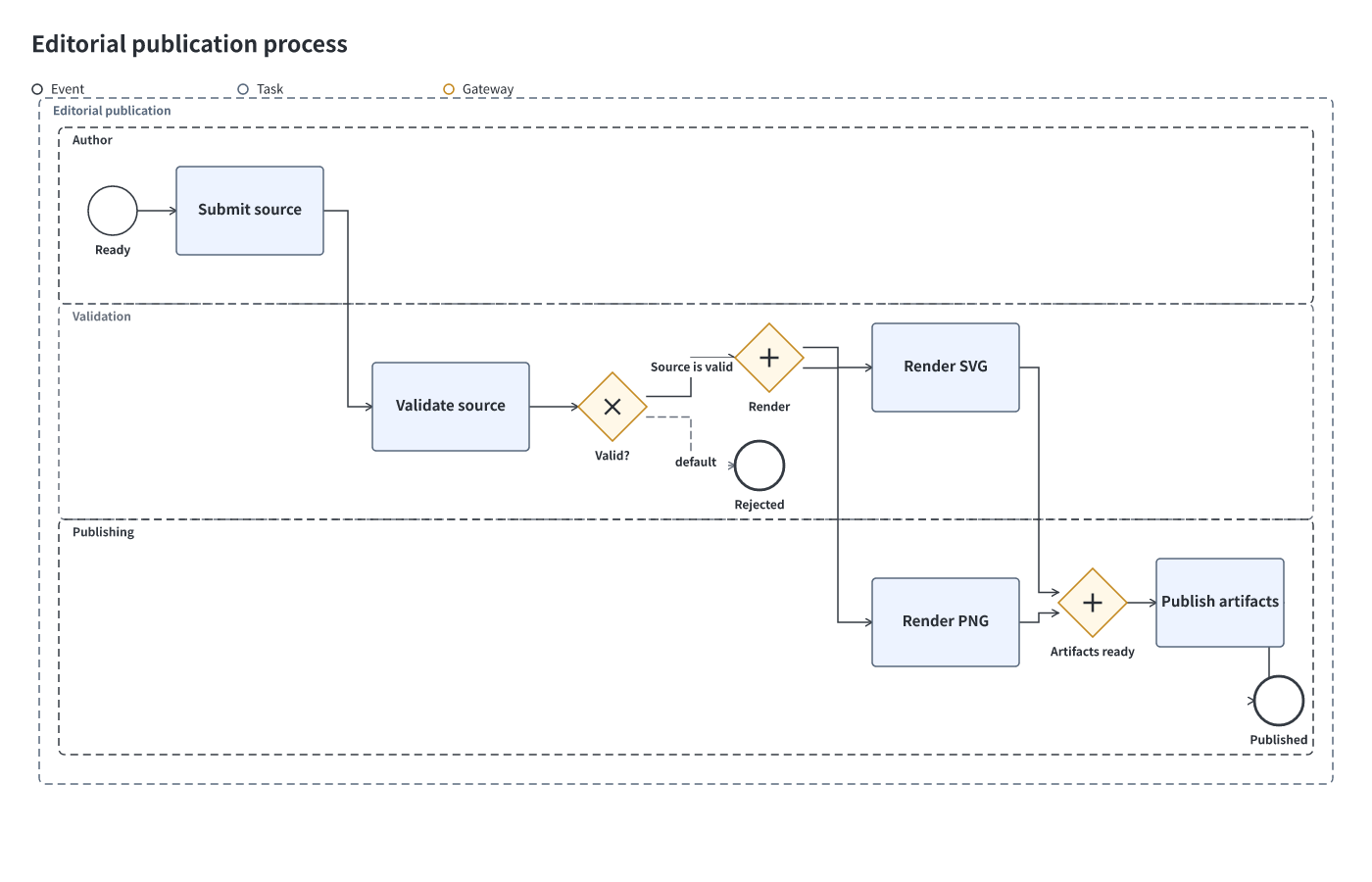

「業務フロー図（BPMN-lite）」の図が要ります。この図はテキストとベクタで公開されているので、絵を描き直すのではなく、公開されているものを取って直すのが早いです。 ## この図が伝えること 人と役割をまたぐ業務の流れを、レーンと分岐で表す。 ## 向いている場合 - 誰が次に動くのかを、担当ごとのレーンで示す。 - 承認や差し戻しの分岐を明示する。 ## 向かない場合 - 複数の pool を跨ぐ組織間プロセス。この profile は single pool に限る。 - BPMN 2.0 の完全な表記が要るとき。lite は意図的に部分集合。 ## この図種が検証していること - single pool のレーン、Start / End Event、Task、Exclusive / Parallel Gateway、条件と default、到達性を検証する。 ## 検証していないこと - 業務として正しい順序かは検査しない。到達できることだけを見る。 ## 取れるもの - https://design-vault.pages.dev/designs/diagram-bpmn-lite/samples/bpmn-editorial-publication/bpmn-lite.drawio - https://design-vault.pages.dev/designs/diagram-bpmn-lite/samples/bpmn-editorial-publication/bpmn-lite.png - https://design-vault.pages.dev/designs/diagram-bpmn-lite/samples/bpmn-editorial-publication/bpmn-lite.svg - https://design-vault.pages.dev/designs/diagram-bpmn-lite/samples/bpmn-editorial-publication/diagram-spec.json - https://design-vault.pages.dev/designs/diagram-bpmn-lite/samples/bpmn-editorial-publication/layout.json - https://design-vault.pages.dev/ai/assets/diagram-bpmn-lite.json ## できる編集 公開された `.drawio` は圧縮されていない XML です。draw.io で開いて直せますし、テキストとして差分も取れます。 この図種がエンジン経由で受け付ける操作: alignNodes, distributeNodes, moveBoundary, moveNode, resizeBoundary, resizeNode この図種は座標の操作だけを受け付けます（意味を変える操作は持ちません）。 ## 新しく書く場合 `diagram-spec.json` は下の schema に沿って書けます。 - https://design-vault.pages.dev/schemas/diagram-spec.schema.json - https://design-vault.pages.dev/schemas/layout.schema.json ## ここでできないこと **書いた spec の検証と `layout.json` の計算はできません。** それを行う生成エンジンは公開されていません。公開されているのは成果物と入力と schema までです。座標を自分で決めるか、エンジンを持っている人に渡してください。 ## ライセンス 図と入力は CC BY 4.0 です。使うときはクレジットを添えてください。 > "BPMN-lite" by zawa, licensed under CC BY 4.0. https://creativecommons.org/licenses/by/4.0/ schema は MIT です。
/designs/diagram-bpmn-lite/samples/bpmn-editorial-publication/bpmn-lite.drawio
<?xml version="1.0" encoding="UTF-8"?> <mxfile host="app.diagrams.net" compressed="false"> <diagram id="editorial-publication-process" name="BPMN-lite" syncFormat="1.0" diagramKind="bpmn-lite" inputHash="13c23298ba050228fd6326c8a4dd3da714498cc13c1ad87a3c96730f72667b3c" generatorVersion="0.6.0"> <mxGraphModel dx="1200" dy="820" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="1400" pageHeight="900" math="0" shadow="0"> <root> <mxCell id="0"/> <mxCell id="1" parent="0"/> <mxCell id="diagram-title" value="Editorial publication process" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=23;fontStyle=1;fontColor=#292E35;spacing=0;align=left;verticalAlign=middle;" vertex="1" parent="1"><mxGeometry x="32" y="22" width="720" height="42" as="geometry"/></mxCell> <mxCell id="legend-0-mark" value="" style="ellipse;html=1;aspect=fixed;fillColor=#FFFFFF;strokeColor=#343A42;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="32" y="85" width="10" height="10" as="geometry"/></mxCell> <mxCell id="legend-0-text" value="Event" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=13;fontStyle=0;fontColor=#292E35;spacing=0;align=left;verticalAlign=middle;" vertex="1" parent="1"><mxGeometry x="49" y="77" width="170" height="28" as="geometry"/></mxCell> <mxCell id="legend-1-mark" value="" style="ellipse;html=1;aspect=fixed;fillColor=#FFFFFF;strokeColor=#59697D;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="254" y="85" width="10" height="10" as="geometry"/></mxCell> <mxCell id="legend-1-text" value="Task" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=13;fontStyle=0;fontColor=#292E35;spacing=0;align=left;verticalAlign=middle;" vertex="1" parent="1"><mxGeometry x="271" y="77" width="170" height="28" as="geometry"/></mxCell> <mxCell id="legend-2-mark" value="" style="ellipse;html=1;aspect=fixed;fillColor=#FFFFFF;strokeColor=#C58A21;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="476" y="85" width="10" height="10" as="geometry"/></mxCell> <mxCell id="legend-2-text" value="Gateway" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=13;fontStyle=0;fontColor=#292E35;spacing=0;align=left;verticalAlign=middle;" vertex="1" parent="1"><mxGeometry x="493" y="77" width="170" height="28" as="geometry"/></mxCell> <object id="publication-pool" label="" componentId="publication-pool" bpmnType="boundary" bpmnBoundaryType="pool" variant="delegated"><mxCell style="rounded=1;arcSize=6;whiteSpace=wrap;html=1;fillColor=none;strokeColor=#59697D;strokeWidth=1.4;dashed=1;dashPattern=8 5;connectable=0;" vertex="1" parent="1"><mxGeometry x="40" y="100" width="1320" height="700" as="geometry"/></mxCell></object> <mxCell id="publication-pool--title" value="Editorial publication" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#59697D;spacing=0;align=left;verticalAlign=middle;labelBackgroundColor=#FFFFFF;" vertex="1" parent="publication-pool" syncRole="boundary-title" ownerId="publication-pool"><mxGeometry x="9" y="4" width="169" height="22" as="geometry"/></mxCell> <object id="author-lane" label="" componentId="author-lane" bpmnType="boundary" bpmnBoundaryType="lane" variant="realtime" parentId="publication-pool"><mxCell style="rounded=1;arcSize=6;whiteSpace=wrap;html=1;fillColor=none;strokeColor=#343A42;strokeWidth=1.4;dashed=1;dashPattern=8 5;connectable=0;" vertex="1" parent="1"><mxGeometry x="60" y="130" width="1280" height="180" as="geometry"/></mxCell></object> <mxCell id="author-lane--title" value="Author" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#343A42;spacing=0;align=left;verticalAlign=middle;labelBackgroundColor=#FFFFFF;" vertex="1" parent="author-lane" syncRole="boundary-title" ownerId="author-lane"><mxGeometry x="9" y="4" width="80" height="22" as="geometry"/></mxCell> <object id="validation-lane" label="" componentId="validation-lane" bpmnType="boundary" bpmnBoundaryType="lane" variant="external" parentId="publication-pool"><mxCell style="rounded=1;arcSize=6;whiteSpace=wrap;html=1;fillColor=none;strokeColor=#69717D;strokeWidth=1.4;dashed=1;dashPattern=7 5;connectable=0;" vertex="1" parent="1"><mxGeometry x="60" y="310" width="1280" height="220" as="geometry"/></mxCell></object> <mxCell id="validation-lane--title" value="Validation" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#69717D;spacing=0;align=left;verticalAlign=middle;labelBackgroundColor=#FFFFFF;" vertex="1" parent="validation-lane" syncRole="boundary-title" ownerId="validation-lane"><mxGeometry x="9" y="4" width="90.4" height="22" as="geometry"/></mxCell> <object id="publishing-lane" label="" componentId="publishing-lane" bpmnType="boundary" bpmnBoundaryType="lane" variant="realtime" parentId="publication-pool"><mxCell style="rounded=1;arcSize=6;whiteSpace=wrap;html=1;fillColor=none;strokeColor=#343A42;strokeWidth=1.4;dashed=1;dashPattern=8 5;connectable=0;" vertex="1" parent="1"><mxGeometry x="60" y="530" width="1280" height="240" as="geometry"/></mxCell></object> <mxCell id="publishing-lane--title" value="Publishing" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#343A42;spacing=0;align=left;verticalAlign=middle;labelBackgroundColor=#FFFFFF;" vertex="1" parent="publishing-lane" syncRole="boundary-title" ownerId="publishing-lane"><mxGeometry x="9" y="4" width="90.4" height="22" as="geometry"/></mxCell> <object id="start-submit" label="" componentId="start-submit" bpmnType="edge" bpmnFlowType="sequence-flow" variant="realtime" direction="forward"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.5;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="start" target="submit"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <object id="submit-validate" label="" componentId="submit-validate" bpmnType="edge" bpmnFlowType="sequence-flow" variant="realtime" direction="forward"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.5;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="submit" target="validate"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <object id="validate-valid" label="" componentId="validate-valid" bpmnType="edge" bpmnFlowType="sequence-flow" variant="realtime" direction="forward"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.5;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="validate" target="valid"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <object id="valid-rejected" label="" componentId="valid-rejected" bpmnType="edge" bpmnFlowType="sequence-flow" variant="external" direction="forward" isDefault="1"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#69717D;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;dashed=1;dashPattern=7 5;exitX=1;exitY=0.65;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="valid" target="rejected"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <mxCell id="valid-rejected--label" value="default" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;labelBackgroundColor=#FFFFFF;" vertex="1" parent="1" syncRole="edge-label" ownerId="valid-rejected"><mxGeometry x="676.96" y="461" width="66.08" height="22" as="geometry"/></mxCell> <object id="valid-render" label="" componentId="valid-render" bpmnType="edge" bpmnFlowType="sequence-flow" variant="realtime" direction="forward" condition="Source is valid"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.35;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="valid" target="render-split"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <mxCell id="valid-render--label" value="Source is valid" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;labelBackgroundColor=#FFFFFF;" vertex="1" parent="1" syncRole="edge-label" ownerId="valid-render"><mxGeometry x="646.44" y="364" width="119.12" height="22" as="geometry"/></mxCell> <object id="split-svg" label="" componentId="split-svg" bpmnType="edge" bpmnFlowType="sequence-flow" variant="realtime" direction="forward"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.35;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="render-split" target="render-svg"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <object id="split-png" label="" componentId="split-png" bpmnType="edge" bpmnFlowType="sequence-flow" variant="realtime" direction="forward"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.65;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="render-split" target="render-png"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <object id="svg-join" label="" componentId="svg-join" bpmnType="edge" bpmnFlowType="sequence-flow" variant="realtime" direction="forward"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.5;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.35;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="render-svg" target="render-join"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <object id="png-join" label="" componentId="png-join" bpmnType="edge" bpmnFlowType="sequence-flow" variant="realtime" direction="forward"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.5;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.65;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="render-png" target="render-join"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <object id="join-publish" label="" componentId="join-publish" bpmnType="edge" bpmnFlowType="sequence-flow" variant="realtime" direction="forward"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.5;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="render-join" target="publish"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <object id="publish-end" label="" componentId="publish-end" bpmnType="edge" bpmnFlowType="sequence-flow" variant="realtime" direction="forward"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.5;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="publish" target="published"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <object id="start" label="" componentId="start" bpmnType="start-event" variant="realtime" laneId="author-lane"><mxCell style="ellipse;aspect=fixed;whiteSpace=wrap;html=1;fillColor=#FFFFFF;strokeColor=#343A42;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="90" y="190" width="50" height="50" as="geometry"/></mxCell></object> <mxCell id="start--title" value="Ready" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="start" syncRole="title" ownerId="start"><mxGeometry x="-20" y="55" width="90" height="24" as="geometry"/></mxCell> <object id="submit" label="" componentId="submit" bpmnType="task" variant="delegated" laneId="author-lane"><mxCell style="rounded=1;arcSize=4;whiteSpace=wrap;html=1;fillColor=#EDF3FF;strokeColor=#59697D;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="180" y="170" width="150" height="90" as="geometry"/></mxCell></object> <mxCell id="submit--title" value="Submit source" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="submit" syncRole="title" ownerId="submit"><mxGeometry x="8" y="0" width="134" height="24" as="geometry"/></mxCell> <object id="validate" label="" componentId="validate" bpmnType="task" variant="delegated" laneId="validation-lane"><mxCell style="rounded=1;arcSize=4;whiteSpace=wrap;html=1;fillColor=#EDF3FF;strokeColor=#59697D;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="380" y="370" width="160" height="90" as="geometry"/></mxCell></object> <mxCell id="validate--title" value="Validate source" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="validate" syncRole="title" ownerId="validate"><mxGeometry x="8" y="0" width="144" height="24" as="geometry"/></mxCell> <object id="valid" label="" componentId="valid" bpmnType="exclusive-gateway" variant="warning" laneId="validation-lane" gatewayRole="split"><mxCell style="rhombus;whiteSpace=wrap;html=1;fillColor=#FFF8E8;strokeColor=#C58A21;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="590" y="380" width="70" height="70" as="geometry"/></mxCell></object> <mxCell id="valid--marker" value="×" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=29.4;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="valid" syncRole="gateway-marker" ownerId="valid"><mxGeometry x="0" y="0" width="70" height="70" as="geometry"/></mxCell> <mxCell id="valid--title" value="Valid?" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="valid" syncRole="title" ownerId="valid"><mxGeometry x="-20" y="75" width="110" height="24" as="geometry"/></mxCell> <object id="rejected" label="" componentId="rejected" bpmnType="end-event" variant="realtime" laneId="validation-lane"><mxCell style="ellipse;aspect=fixed;whiteSpace=wrap;html=1;fillColor=#FFFFFF;strokeColor=#343A42;strokeWidth=2.8;" vertex="1" parent="1"><mxGeometry x="750" y="450" width="50" height="50" as="geometry"/></mxCell></object> <mxCell id="rejected--title" value="Rejected" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="rejected" syncRole="title" ownerId="rejected"><mxGeometry x="-20" y="55" width="90" height="24" as="geometry"/></mxCell> <object id="render-split" label="" componentId="render-split" bpmnType="parallel-gateway" variant="warning" laneId="validation-lane" gatewayRole="split"><mxCell style="rhombus;whiteSpace=wrap;html=1;fillColor=#FFF8E8;strokeColor=#C58A21;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="750" y="330" width="70" height="70" as="geometry"/></mxCell></object> <mxCell id="render-split--marker" value="+" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=29.4;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="render-split" syncRole="gateway-marker" ownerId="render-split"><mxGeometry x="0" y="0" width="70" height="70" as="geometry"/></mxCell> <mxCell id="render-split--title" value="Render" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="render-split" syncRole="title" ownerId="render-split"><mxGeometry x="-20" y="75" width="110" height="24" as="geometry"/></mxCell> <object id="render-svg" label="" componentId="render-svg" bpmnType="task" variant="delegated" laneId="validation-lane"><mxCell style="rounded=1;arcSize=4;whiteSpace=wrap;html=1;fillColor=#EDF3FF;strokeColor=#59697D;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="890" y="330" width="150" height="90" as="geometry"/></mxCell></object> <mxCell id="render-svg--title" value="Render SVG" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="render-svg" syncRole="title" ownerId="render-svg"><mxGeometry x="8" y="0" width="134" height="24" as="geometry"/></mxCell> <object id="render-png" label="" componentId="render-png" bpmnType="task" variant="delegated" laneId="publishing-lane"><mxCell style="rounded=1;arcSize=4;whiteSpace=wrap;html=1;fillColor=#EDF3FF;strokeColor=#59697D;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="890" y="590" width="150" height="90" as="geometry"/></mxCell></object> <mxCell id="render-png--title" value="Render PNG" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="render-png" syncRole="title" ownerId="render-png"><mxGeometry x="8" y="0" width="134" height="24" as="geometry"/></mxCell> <object id="render-join" label="" componentId="render-join" bpmnType="parallel-gateway" variant="warning" laneId="publishing-lane" gatewayRole="join"><mxCell style="rhombus;whiteSpace=wrap;html=1;fillColor=#FFF8E8;strokeColor=#C58A21;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="1080" y="580" width="70" height="70" as="geometry"/></mxCell></object> <mxCell id="render-join--marker" value="+" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=29.4;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="render-join" syncRole="gateway-marker" ownerId="render-join"><mxGeometry x="0" y="0" width="70" height="70" as="geometry"/></mxCell> <mxCell id="render-join--title" value="Artifacts ready" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="render-join" syncRole="title" ownerId="render-join"><mxGeometry x="-20" y="75" width="110" height="24" as="geometry"/></mxCell> <object id="publish" label="" componentId="publish" bpmnType="task" variant="delegated" laneId="publishing-lane"><mxCell style="rounded=1;arcSize=4;whiteSpace=wrap;html=1;fillColor=#EDF3FF;strokeColor=#59697D;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="1180" y="570" width="130" height="90" as="geometry"/></mxCell></object> <mxCell id="publish--title" value="Publish artifacts" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="publish" syncRole="title" ownerId="publish"><mxGeometry x="8" y="0" width="114" height="24" as="geometry"/></mxCell> <object id="published" label="" componentId="published" bpmnType="end-event" variant="realtime" laneId="publishing-lane"><mxCell style="ellipse;aspect=fixed;whiteSpace=wrap;html=1;fillColor=#FFFFFF;strokeColor=#343A42;strokeWidth=2.8;" vertex="1" parent="1"><mxGeometry x="1280" y="690" width="50" height="50" as="geometry"/></mxCell></object> <mxCell id="published--title" value="Published" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="published" syncRole="title" ownerId="published"><mxGeometry x="-20" y="55" width="90" height="24" as="geometry"/></mxCell> </root> </mxGraphModel> </diagram> </mxfile>
/designs/diagram-bpmn-lite/samples/bpmn-editorial-publication/diagram-spec.json
{
"schemaVersion": "2.0",
"diagramKind": "bpmn-lite",
"id": "editorial-publication-process",
"title": "Editorial publication process",
"language": "en",
"pool": {
"id": "publication-pool",
"type": "pool",
"title": "Editorial publication"
},
"lanes": [
{
"id": "author-lane",
"type": "lane",
"title": "Author"
},
{
"id": "validation-lane",
"type": "lane",
"title": "Validation"
},
{
"id": "publishing-lane",
"type": "lane",
"title": "Publishing"
}
],
"nodes": [
{
"id": "start",
"type": "start-event",
"title": "Ready",
"laneId": "author-lane"
},
{
"id": "submit",
"type": "task",
"title": "Submit source",
"laneId": "author-lane"
},
{
"id": "validate",
"type": "task",
"title": "Validate source",
"laneId": "validation-lane"
},
{
"id": "valid",
"type": "exclusive-gateway",
"title": "Valid?",
"laneId": "validation-lane",
"gatewayRole": "split"
},
{
"id": "rejected",
"type": "end-event",
"title": "Rejected",
"laneId": "validation-lane"
},
{
"id": "render-split",
"type": "parallel-gateway",
"title": "Render",
"laneId": "validation-lane",
"gatewayRole": "split"
},
{
"id": "render-svg",
"type": "task",
"title": "Render SVG",
"laneId": "validation-lane"
},
{
"id": "render-png",
"type": "task",
"title": "Render PNG",
"laneId": "publishing-lane"
},
{
"id": "render-join",
"type": "parallel-gateway",
"title": "Artifacts ready",
"laneId": "publishing-lane",
"gatewayRole": "join"
},
{
"id": "publish",
"type": "task",
"title": "Publish artifacts",
"laneId": "publishing-lane"
},
{
"id": "published",
"type": "end-event",
"title": "Published",
"laneId": "publishing-lane"
}
],
"edges": [
{
"id": "start-submit",
"type": "sequence-flow",
"from": "start",
"to": "submit"
},
{
"id": "submit-validate",
"type": "sequence-flow",
"from": "submit",
"to": "validate"
},
{
"id": "validate-valid",
"type": "sequence-flow",
"from": "validate",
"to": "valid"
},
{
"id": "valid-rejected",
"type": "sequence-flow",
"from": "valid",
"to": "rejected",
"isDefault": true
},
{
"id": "valid-render",
"type": "sequence-flow",
"from": "valid",
"to": "render-split",
"condition": "Source is valid"
},
{
"id": "split-svg",
"type": "sequence-flow",
"from": "render-split",
"to": "render-svg"
},
{
"id": "split-png",
"type": "sequence-flow",
"from": "render-split",
"to": "render-png"
},
{
"id": "svg-join",
"type": "sequence-flow",
"from": "render-svg",
"to": "render-join"
},
{
"id": "png-join",
"type": "sequence-flow",
"from": "render-png",
"to": "render-join"
},
{
"id": "join-publish",
"type": "sequence-flow",
"from": "render-join",
"to": "publish"
},
{
"id": "publish-end",
"type": "sequence-flow",
"from": "publish",
"to": "published"
}
]
}
/designs/diagram-bpmn-lite/samples/bpmn-editorial-publication/layout.json
{
"schemaVersion": "1.0",
"canvas": {
"width": 1400,
"height": 900
},
"boundaries": {
"publication-pool": {
"x": 40,
"y": 100,
"width": 1320,
"height": 700
},
"author-lane": {
"x": 60,
"y": 130,
"width": 1280,
"height": 180
},
"validation-lane": {
"x": 60,
"y": 310,
"width": 1280,
"height": 220
},
"publishing-lane": {
"x": 60,
"y": 530,
"width": 1280,
"height": 240
}
},
"nodes": {
"start": {
"x": 90,
"y": 190,
"width": 50,
"height": 50
},
"submit": {
"x": 180,
"y": 170,
"width": 150,
"height": 90
},
"validate": {
"x": 380,
"y": 370,
"width": 160,
"height": 90
},
"valid": {
"x": 590,
"y": 380,
"width": 70,
"height": 70
},
"rejected": {
"x": 750,
"y": 450,
"width": 50,
"height": 50
},
"render-split": {
"x": 750,
"y": 330,
"width": 70,
"height": 70
},
"render-svg": {
"x": 890,
"y": 330,
"width": 150,
"height": 90
},
"render-png": {
"x": 890,
"y": 590,
"width": 150,
"height": 90
},
"render-join": {
"x": 1080,
"y": 580,
"width": 70,
"height": 70
},
"publish": {
"x": 1180,
"y": 570,
"width": 130,
"height": 90
},
"published": {
"x": 1280,
"y": 690,
"width": 50,
"height": 50
}
},
"edges": {
"start-submit": {
"source": {
"side": "right",
"offset": 0.5
},
"target": {
"side": "left",
"offset": 0.5
}
},
"submit-validate": {
"source": {
"side": "right",
"offset": 0.5
},
"target": {
"side": "left",
"offset": 0.5
}
},
"validate-valid": {
"source": {
"side": "right",
"offset": 0.5
},
"target": {
"side": "left",
"offset": 0.5
}
},
"valid-rejected": {
"source": {
"side": "right",
"offset": 0.65
},
"target": {
"side": "left",
"offset": 0.5
},
"label": {
"x": 710,
"y": 472
}
},
"valid-render": {
"source": {
"side": "right",
"offset": 0.35
},
"target": {
"side": "left",
"offset": 0.5
},
"label": {
"x": 706,
"y": 375
}
},
"split-svg": {
"source": {
"side": "right",
"offset": 0.35
},
"target": {
"side": "left",
"offset": 0.5
}
},
"split-png": {
"source": {
"side": "right",
"offset": 0.65
},
"target": {
"side": "left",
"offset": 0.5
}
},
"svg-join": {
"source": {
"side": "right",
"offset": 0.5
},
"target": {
"side": "left",
"offset": 0.35
}
},
"png-join": {
"source": {
"side": "right",
"offset": 0.5
},
"target": {
"side": "left",
"offset": 0.65
}
},
"join-publish": {
"source": {
"side": "right",
"offset": 0.5
},
"target": {
"side": "left",
"offset": 0.5
}
},
"publish-end": {
"source": {
"side": "right",
"offset": 0.5
},
"target": {
"side": "left",
"offset": 0.5
}
}
}
}
/schemas/diagram-spec.schema.json — 大きいのでファイルで渡す（コピーは 32KB まで）
{
"$schema": "https://json-schema.org/draft/2020-12/schema",
"$id": "https://example.local/schemas/diagram-spec.schema.json",
"title": "Editorial diagram semantic specification",
"oneOf": [
{ "$ref": "#/$defs/legacyArchitectureSpec" },
{ "$ref": "#/$defs/architectureSpec" },
{ "$ref": "#/$defs/c4SystemContextSpec" },
{ "$ref": "#/$defs/c4ContainerSpec" },
{ "$ref": "#/$defs/dataFlowSpec" },
{ "$ref": "#/$defs/deploymentSpec" },
{ "$ref": "#/$defs/bpmnLiteSpec" },
{ "$ref": "#/$defs/sequenceSpec" },
{ "$ref": "#/$defs/erSpec" },
{ "$ref": "#/$defs/stateSpec" },
{ "$ref": "#/$defs/decisionTreeSpec" },
{ "$ref": "#/$defs/timelineSpec" },
{ "$ref": "#/$defs/roadmapSpec" },
{ "$ref": "#/$defs/capabilityMapSpec" },
{ "$ref": "#/$defs/executiveViewSpec" }
],
"$defs": {
"baseSpec": {
"type": "object",
"required": ["schemaVersion", "id", "title", "language", "legend", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "type": "string" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"legend": {
"type": "array",
"maxItems": 8,
"items": {
"type": "object",
"additionalProperties": false,
"required": ["label", "variant"],
"properties": {
"label": { "type": "string", "minLength": 1, "maxLength": 60 },
"variant": { "$ref": "#/$defs/variant" }
}
}
},
"boundaries": {
"type": "array",
"maxItems": 50,
"items": { "$ref": "#/$defs/boundary" }
},
"nodes": {
"type": "array",
"minItems": 1,
"items": { "$ref": "#/$defs/node" }
},
"edges": {
"type": "array",
"items": { "$ref": "#/$defs/edge" }
}
}
},
"legacyArchitectureSpec": {
"type": "object",
"allOf": [
{ "$ref": "#/$defs/baseSpec" },
{
"type": "object",
"properties": {
"schemaVersion": { "const": "1.0" }
}
}
],
"unevaluatedProperties": false
},
"architectureSpec": {
"type": "object",
"allOf": [
{ "$ref": "#/$defs/baseSpec" },
{
"type": "object",
"required": ["diagramKind"],
"properties": {
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "architecture" }
}
}
],
"unevaluatedProperties": false
},
"c4SystemContextSpec": {
"type": "object",
"additionalProperties": false,
"required": [
"schemaVersion", "diagramKind", "id", "title", "language", "scopeSystemId",
"scopeBoundaryId", "boundaries", "nodes", "edges"
],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "c4-system-context" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"scopeSystemId": { "$ref": "#/$defs/id" },
"scopeBoundaryId": { "$ref": "#/$defs/id" },
"boundaries": {
"type": "array",
"minItems": 1,
"maxItems": 8,
"items": { "$ref": "#/$defs/c4SystemBoundary" }
},
"nodes": {
"type": "array",
"minItems": 2,
"maxItems": 50,
"items": { "$ref": "#/$defs/c4Element" }
},
"edges": {
"type": "array",
"minItems": 1,
"maxItems": 100,
"items": { "$ref": "#/$defs/c4Relationship" }
}
}
},
"c4SystemBoundary": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "system-boundary" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"c4Element": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["person", "software-system", "external-system"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"c4Relationship": {
"type": "object",
"additionalProperties": false,
"required": ["id", "from", "to", "type", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"type": { "const": "relationship" },
"description": { "type": "string", "minLength": 3, "maxLength": 160 },
"technology": { "type": "string", "minLength": 1, "maxLength": 64 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"c4ContainerSpec": {
"type": "object",
"additionalProperties": false,
"required": [
"schemaVersion", "diagramKind", "id", "title", "language", "contextDiagramId",
"scopeSystemId", "scopeBoundaryId", "boundaries", "nodes", "edges"
],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "c4-container" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"contextDiagramId": { "$ref": "#/$defs/id" },
"scopeSystemId": { "$ref": "#/$defs/id" },
"scopeBoundaryId": { "$ref": "#/$defs/id" },
"boundaries": {
"type": "array",
"minItems": 1,
"maxItems": 8,
"items": { "$ref": "#/$defs/c4SystemBoundary" }
},
"nodes": {
"type": "array",
"minItems": 1,
"maxItems": 80,
"items": { "$ref": "#/$defs/c4ContainerElement" }
},
"edges": {
"type": "array",
"minItems": 1,
"maxItems": 160,
"items": { "$ref": "#/$defs/c4Relationship" }
}
}
},
"c4ContainerElement": {
"oneOf": [
{ "$ref": "#/$defs/c4ContainerPrimary" },
{ "$ref": "#/$defs/c4ContainerSupportingElement" }
]
},
"c4ContainerPrimary": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "containerKind", "title", "description", "technology"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "container" },
"containerKind": { "enum": ["application", "data-store"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"technology": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"c4ContainerSupportingElement": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["person", "external-system"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"bpmnLiteSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "pool", "lanes", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "bpmn-lite" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"pool": { "$ref": "#/$defs/bpmnPool" },
"lanes": {
"type": "array",
"minItems": 2,
"maxItems": 16,
"items": { "$ref": "#/$defs/bpmnLane" }
},
"nodes": {
"type": "array",
"minItems": 4,
"maxItems": 160,
"items": { "$ref": "#/$defs/bpmnFlowNode" }
},
"edges": {
"type": "array",
"minItems": 3,
"maxItems": 320,
"items": { "$ref": "#/$defs/bpmnSequenceFlow" }
}
}
},
"bpmnPool": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "pool" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"bpmnLane": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "lane" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"bpmnFlowNode": {
"oneOf": [
{ "$ref": "#/$defs/bpmnSimpleFlowNode" },
{ "$ref": "#/$defs/bpmnGateway" }
]
},
"bpmnSimpleFlowNode": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "laneId"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["start-event", "end-event", "task"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"laneId": { "$ref": "#/$defs/id" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"bpmnGateway": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "laneId", "gatewayRole"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["exclusive-gateway", "parallel-gateway"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"laneId": { "$ref": "#/$defs/id" },
"gatewayRole": { "enum": ["split", "join"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"bpmnSequenceFlow": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "sequence-flow" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"condition": { "type": "string", "minLength": 1, "maxLength": 160 },
"isDefault": { "type": "boolean" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"sequenceSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "nodes", "fragments", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "sequence" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"nodes": { "type": "array", "minItems": 2, "maxItems": 32, "items": { "$ref": "#/$defs/sequenceLifeline" } },
"fragments": { "type": "array", "maxItems": 24, "items": { "$ref": "#/$defs/sequenceFragment" } },
"edges": { "type": "array", "minItems": 1, "maxItems": 320, "items": { "$ref": "#/$defs/sequenceMessage" } }
}
},
"sequenceLifeline": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "occurrenceIds"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "lifeline" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"occurrenceIds": { "type": "array", "minItems": 1, "maxItems": 320, "uniqueItems": true, "items": { "$ref": "#/$defs/id" } },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"sequenceFragment": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "operator", "title", "operands"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "combined-fragment" },
"operator": { "enum": ["alt", "opt", "par"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"operands": { "type": "array", "minItems": 1, "maxItems": 8, "items": { "$ref": "#/$defs/sequenceOperand" } },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"sequenceOperand": {
"type": "object",
"additionalProperties": false,
"required": ["id", "occurrenceIds"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"guard": { "type": "string", "minLength": 1, "maxLength": 120 },
"occurrenceIds": { "type": "array", "minItems": 1, "maxItems": 160, "uniqueItems": true, "items": { "$ref": "#/$defs/id" } }
}
},
"sequenceMessage": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to", "title", "sendOccurrenceId", "receiveOccurrenceId"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["sync-message", "async-message", "return-message"] },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"sendOccurrenceId": { "$ref": "#/$defs/id" },
"receiveOccurrenceId": { "$ref": "#/$defs/id" },
"replyTo": { "$ref": "#/$defs/id" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"erSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "er" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"nodes": { "type": "array", "minItems": 2, "maxItems": 120, "items": { "$ref": "#/$defs/erEntity" } },
"edges": { "type": "array", "maxItems": 240, "items": { "$ref": "#/$defs/erForeignKey" } }
}
},
"erEntity": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "attributes", "primaryKey", "uniqueKeys"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "entity" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"attributes": { "type": "array", "minItems": 1, "maxItems": 80, "items": { "$ref": "#/$defs/erAttribute" } },
"primaryKey": { "$ref": "#/$defs/erKey" },
"uniqueKeys": { "type": "array", "maxItems": 24, "items": { "$ref": "#/$defs/erKey" } },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"erAttribute": {
"type": "object",
"additionalProperties": false,
"required": ["id", "name", "dataType", "nullable"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"name": { "type": "string", "minLength": 1, "maxLength": 80 },
"dataType": { "type": "string", "minLength": 1, "maxLength": 80 },
"nullable": { "type": "boolean" }
}
},
"erKey": {
"type": "object",
"additionalProperties": false,
"required": ["id", "attributeIds"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"attributeIds": { "type": "array", "maxItems": 16, "items": { "$ref": "#/$defs/id" } }
}
},
"erForeignKey": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to", "fromAttributeIds", "toAttributeIds", "fromCardinality", "toCardinality", "identifying"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "foreign-key" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"fromAttributeIds": { "type": "array", "maxItems": 16, "items": { "$ref": "#/$defs/id" } },
"toAttributeIds": { "type": "array", "maxItems": 16, "items": { "$ref": "#/$defs/id" } },
"fromCardinality": { "$ref": "#/$defs/erCardinality" },
"toCardinality": { "$ref": "#/$defs/erCardinality" },
"identifying": { "type": "boolean" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"erCardinality": { "enum": ["zero-or-one", "one", "zero-or-many", "one-or-many"] },
"stateSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "initialStateId", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "state" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"initialStateId": { "$ref": "#/$defs/id" },
"nodes": { "type": "array", "minItems": 2, "maxItems": 120, "items": { "$ref": "#/$defs/stateNode" } },
"edges": { "type": "array", "minItems": 1, "maxItems": 240, "items": { "$ref": "#/$defs/stateTransition" } }
}
},
"stateNode": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["state", "final-state"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"stateTransition": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to", "event"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "transition" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"event": { "type": "string", "minLength": 1, "maxLength": 120 },
"guard": { "type": "string", "minLength": 1, "maxLength": 160 },
"action": { "type": "string", "minLength": 1, "maxLength": 160 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"decisionTreeSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "rootNodeId", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "decision-tree" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"rootNodeId": { "$ref": "#/$defs/id" },
"nodes": { "type": "array", "minItems": 3, "maxItems": 160, "items": { "$ref": "#/$defs/decisionTreeNode" } },
"edges": { "type": "array", "minItems": 2, "maxItems": 320, "items": { "$ref": "#/$defs/decisionBranch" } }
}
},
"decisionTreeNode": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["decision", "outcome"] },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"decisionBranch": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to", "isDefault"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "branch" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"condition": { "type": "string", "minLength": 1, "maxLength": 160 },
"isDefault": { "type": "boolean" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"timelineSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "windowStart", "windowEnd", "workstreams", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "timeline" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"windowStart": { "$ref": "#/$defs/isoDate" },
"windowEnd": { "$ref": "#/$defs/isoDate" },
"workstreams": { "type": "array", "minItems": 1, "maxItems": 6, "items": { "$ref": "#/$defs/timelineWorkstream" } },
"nodes": { "type": "array", "minItems": 1, "maxItems": 40, "items": { "$ref": "#/$defs/timelineItem" } },
"edges": { "type": "array", "maxItems": 80, "items": { "$ref": "#/$defs/timelineDependency" } }
}
},
"timelineWorkstream": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "workstream" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"timelineItem": {
"oneOf": [
{ "$ref": "#/$defs/timelineTask" },
{ "$ref": "#/$defs/timelineMilestone" }
]
},
"timelineTask": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "workstreamId", "startDate", "endDate", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "task" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"workstreamId": { "$ref": "#/$defs/id" },
"startDate": { "$ref": "#/$defs/isoDate" },
"endDate": { "$ref": "#/$defs/isoDate" },
"status": { "$ref": "#/$defs/timelineStatus" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"timelineMilestone": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "workstreamId", "date", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "milestone" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"workstreamId": { "$ref": "#/$defs/id" },
"date": { "$ref": "#/$defs/isoDate" },
"status": { "$ref": "#/$defs/timelineStatus" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"timelineDependency": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "finish-to-start" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"timelineStatus": { "enum": ["planned", "active", "blocked", "done"] },
"isoDate": { "type": "string", "pattern": "^[0-9]{4}-[0-9]{2}-[0-9]{2}$" },
"roadmapSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "vision", "horizons", "themes", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "roadmap" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"vision": { "type": "string", "minLength": 8, "maxLength": 180 },
"horizons": { "type": "array", "minItems": 3, "maxItems": 3, "items": { "$ref": "#/$defs/roadmapHorizon" } },
"themes": { "type": "array", "minItems": 1, "maxItems": 5, "items": { "$ref": "#/$defs/roadmapTheme" } },
"nodes": { "type": "array", "minItems": 1, "maxItems": 24, "items": { "$ref": "#/$defs/roadmapInitiative" } },
"edges": { "type": "array", "maxItems": 0 }
}
},
"roadmapHorizon": {
"type": "object",
"additionalProperties": false,
"required": ["id", "kind", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"kind": { "enum": ["now", "next", "later"] },
"title": { "type": "string", "minLength": 1, "maxLength": 40 },
"description": { "type": "string", "minLength": 3, "maxLength": 120 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"roadmapTheme": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "theme" },
"title": { "type": "string", "minLength": 1, "maxLength": 60 },
"description": { "type": "string", "minLength": 3, "maxLength": 160 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"roadmapInitiative": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "outcome", "themeId", "horizonId", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "initiative" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 200 },
"outcome": { "type": "string", "minLength": 8, "maxLength": 220 },
"themeId": { "$ref": "#/$defs/id" },
"horizonId": { "$ref": "#/$defs/id" },
"status": { "enum": ["exploring", "planned", "active", "delivered"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"capabilityMapSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "scope", "domains", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "capability-map" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"scope": { "type": "string", "minLength": 8, "maxLength": 220 },
"domains": { "type": "array", "minItems": 2, "maxItems": 6, "items": { "$ref": "#/$defs/capabilityDomain" } },
"nodes": { "type": "array", "minItems": 2, "maxItems": 30, "items": { "$ref": "#/$defs/capability" } },
"edges": { "type": "array", "maxItems": 0 }
}
},
"capabilityDomain": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "domain" },
"title": { "type": "string", "minLength": 1, "maxLength": 60 },
"description": { "type": "string", "minLength": 3, "maxLength": 160 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"capability": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "domainId", "strategicImportance"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "capability" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 200 },
"domainId": { "$ref": "#/$defs/id" },
"strategicImportance": { "enum": ["low", "medium", "high"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"executiveViewSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "asOfDate", "objective", "recommendation", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "executive-view" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"asOfDate": { "$ref": "#/$defs/isoDate" },
"objective": { "type": "string", "minLength": 8, "maxLength": 220 },
"recommendation": { "type": "string", "minLength": 8, "maxLength": 240 },
"nodes": { "type": "array", "minItems": 4, "maxItems": 13, "items": { "$ref": "#/$defs/executiveItem" } },
"edges": { "type": "array", "maxItems": 0 }
}
},
"executiveItem": {
"oneOf": [
{ "$ref": "#/$defs/executiveIndicator" },
{ "$ref": "#/$defs/executiveRisk" },
{ "$ref": "#/$defs/executiveDecision" }
]
},
"executiveIndicator": {
"type": "object", "additionalProperties": false,
"required": ["id", "type", "title", "description", "value", "target", "trend", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" }, "type": { "const": "indicator" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 200 },
"value": { "type": "string", "minLength": 1, "maxLength": 60 },
"target": { "type": "string", "minLength": 1, "maxLength": 60 },
"trend": { "enum": ["improving", "steady", "declining"] },
"status": { "enum": ["on-track", "at-risk", "off-track"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"executiveRisk": {
"type": "object", "additionalProperties": false,
"required": ["id", "type", "title", "description", "impact", "response", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" }, "type": { "const": "risk" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 200 },
"impact": { "enum": ["low", "medium", "high"] },
"response": { "type": "string", "minLength": 3, "maxLength": 220 },
"status": { "enum": ["open", "watch", "mitigated"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"executiveDecision": {
"type": "object", "additionalProperties": false,
"required": ["id", "type", "title", "description", "recommendation", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" }, "type": { "const": "decision" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 200 },
"recommendation": { "type": "string", "minLength": 3, "maxLength": 220 },
"status": { "enum": ["open", "approved", "deferred"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataFlowSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "boundaries", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "data-flow" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"boundaries": {
"type": "array",
"maxItems": 32,
"items": { "$ref": "#/$defs/dataFlowTrustBoundary" }
},
"nodes": {
"type": "array",
"minItems": 2,
"maxItems": 120,
"items": { "$ref": "#/$defs/dataFlowNode" }
},
"edges": {
"type": "array",
"minItems": 1,
"maxItems": 240,
"items": { "$ref": "#/$defs/dataFlowEdge" }
}
}
},
"dataFlowTrustBoundary": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "trustLevel"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "trust-boundary" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"trustLevel": { "enum": ["external", "controlled", "restricted"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataFlowNode": {
"oneOf": [
{ "$ref": "#/$defs/dataFlowSimpleNode" },
{ "$ref": "#/$defs/dataFlowProcess" },
{ "$ref": "#/$defs/dataFlowDataStore" }
]
},
"dataFlowSimpleNode": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["source", "sink", "external-system"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataFlowProcess": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "transformation"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "process" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"transformation": { "type": "string", "minLength": 3, "maxLength": 160 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataFlowDataStore": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "classification"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "data-store" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"classification": { "$ref": "#/$defs/dataClassification" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataFlowEdge": {
"type": "object",
"additionalProperties": false,
"required": ["id", "from", "to", "type", "dataName", "format", "frequency", "mode", "classification"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"type": { "const": "data-flow" },
"dataName": { "type": "string", "minLength": 1, "maxLength": 100 },
"format": { "type": "string", "minLength": 1, "maxLength": 80 },
"frequency": { "type": "string", "minLength": 1, "maxLength": 80 },
"mode": { "enum": ["batch", "streaming", "request-response"] },
"classification": { "$ref": "#/$defs/dataClassification" },
"trustBoundaryIds": {
"type": "array",
"maxItems": 32,
"uniqueItems": true,
"items": { "$ref": "#/$defs/id" }
},
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataClassification": { "enum": ["public", "internal", "confidential", "restricted"] },
"deploymentSpec": {
"type": "object",
"additionalProperties": false,
"required": [
"schemaVersion", "diagramKind", "id", "title", "language", "environment",
"entryNodeIds", "boundaries", "nodes", "edges"
],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "deployment" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"environment": { "type": "string", "minLength": 1, "maxLength": 80 },
"entryNodeIds": {
"type": "array",
"minItems": 1,
"maxItems": 32,
"uniqueItems": true,
"items": { "$ref": "#/$defs/id" }
},
"boundaries": {
"type": "array",
"minItems": 4,
"maxItems": 64,
"items": { "$ref": "#/$defs/deploymentBoundary" }
},
"nodes": {
"type": "array",
"minItems": 2,
"maxItems": 160,
"items": { "$ref": "#/$defs/deploymentNode" }
},
"edges": {
"type": "array",
"minItems": 1,
"maxItems": 320,
"items": { "$ref": "#/$defs/deploymentCommunication" }
}
}
},
"deploymentBoundary": {
"oneOf": [
{ "$ref": "#/$defs/deploymentCloudProvider" },
{ "$ref": "#/$defs/deploymentRegion" },
{ "$ref": "#/$defs/deploymentNetworkBoundary" }
]
},
"deploymentCloudProvider": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "cloud-provider" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"deploymentRegion": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "parentId"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "region" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"parentId": { "$ref": "#/$defs/id" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"deploymentNetworkBoundary": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "parentId", "exposure"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["network", "subnet"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"parentId": { "$ref": "#/$defs/id" },
"exposure": { "$ref": "#/$defs/networkExposure" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"deploymentNode": {
"oneOf": [
{ "$ref": "#/$defs/deploymentExternalSystem" },
{ "$ref": "#/$defs/deploymentManagedNode" }
]
},
"deploymentExternalSystem": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "technology", "exposure"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "external-system" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"technology": { "type": "string", "minLength": 1, "maxLength": 100 },
"exposure": { "const": "public" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"deploymentManagedNode": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "technology", "exposure", "boundaryId"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["gateway", "load-balancer", "firewall", "host", "service", "database"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"technology": { "type": "string", "minLength": 1, "maxLength": 100 },
"exposure": { "$ref": "#/$defs/networkExposure" },
"boundaryId": { "$ref": "#/$defs/id" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"deploymentCommunication": {
"type": "object",
"additionalProperties": false,
"required": ["id", "from", "to", "type", "description", "protocol", "port"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"type": { "const": "communication" },
"description": { "type": "string", "minLength": 3, "maxLength": 160 },
"protocol": { "type": "string", "minLength": 1, "maxLength": 40 },
"port": { "type": "integer", "minimum": 1, "maximum": 65535 },
"boundaryIds": {
"type": "array",
"maxItems": 64,
"uniqueItems": true,
"items": { "$ref": "#/$defs/id" }
},
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"networkExposure": { "enum": ["public", "private", "restricted"] },
"id": { "type": "string", "pattern": "^[a-z][a-z0-9-]{1,63}$" },
"variant": { "enum": ["realtime", "delegated", "external", "warning", "critical"] },
"status": { "enum": ["planned", "experimental", "beta", "stable", "deprecated", "retired"] },
"metadata": {
"type": "object",
"additionalProperties": { "type": "string", "maxLength": 200 }
},
"boundary": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "variant", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["system", "network", "trust", "organization", "runtime"] },
"variant": { "$ref": "#/$defs/variant" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"node": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "variant", "status", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": {
"enum": [
"actor", "client", "frontend", "backend", "api", "service", "model", "agent",
"tool", "database", "cache", "queue", "event-bus", "storage", "batch-job",
"external-service", "observability", "security", "network", "note"
]
},
"variant": { "$ref": "#/$defs/variant" },
"status": { "$ref": "#/$defs/status" },
"title": { "type": "string", "minLength": 1, "maxLength": 60 },
"subtitle": { "type": "string", "maxLength": 100 },
"icon": { "$ref": "#/$defs/id" },
"controls": {
"type": "array",
"maxItems": 8,
"items": { "type": "string", "minLength": 1, "maxLength": 32 }
},
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"edge": {
"type": "object",
"additionalProperties": false,
"required": ["id", "from", "to", "type", "variant", "direction"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"type": {
"enum": [
"sync-request", "async-request", "realtime-stream", "event", "batch", "data-read",
"data-write", "control", "monitoring", "authentication"
]
},
"variant": { "$ref": "#/$defs/variant" },
"label": { "type": "string", "maxLength": 80 },
"direction": { "enum": ["forward", "bidirectional"] },
"protocol": { "type": "string", "maxLength": 32 },
"metadata": { "$ref": "#/$defs/metadata" }
}
}
}
}
{
"$schema": "https://json-schema.org/draft/2020-12/schema",
"$id": "https://example.local/schemas/layout.schema.json",
"title": "Architecture diagram layout",
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "canvas", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "1.0" },
"canvas": {
"type": "object",
"additionalProperties": false,
"required": ["width", "height"],
"properties": {
"width": { "type": "integer", "minimum": 320, "maximum": 10000 },
"height": { "type": "integer", "minimum": 240, "maximum": 10000 }
}
},
"boundaries": {
"type": "object",
"additionalProperties": { "$ref": "#/$defs/boundaryGeometry" }
},
"nodes": {
"type": "object",
"additionalProperties": { "$ref": "#/$defs/nodeGeometry" }
},
"edges": {
"type": "object",
"additionalProperties": { "$ref": "#/$defs/edgeGeometry" }
}
},
"$defs": {
"point": {
"type": "object",
"additionalProperties": false,
"required": ["x", "y"],
"properties": {
"x": { "type": "number", "minimum": 0, "maximum": 10000 },
"y": { "type": "number", "minimum": 0, "maximum": 10000 }
}
},
"port": {
"type": "object",
"additionalProperties": false,
"required": ["side", "offset"],
"properties": {
"side": { "enum": ["top", "right", "bottom", "left"] },
"offset": { "type": "number", "minimum": 0, "maximum": 1 }
}
},
"nodeGeometry": {
"type": "object",
"additionalProperties": false,
"required": ["x", "y", "width", "height"],
"properties": {
"x": { "type": "number", "minimum": 0, "maximum": 10000 },
"y": { "type": "number", "minimum": 0, "maximum": 10000 },
"width": { "type": "number", "minimum": 40, "maximum": 3000 },
"height": { "type": "number", "minimum": 30, "maximum": 3000 }
}
},
"boundaryGeometry": {
"type": "object",
"additionalProperties": false,
"required": ["x", "y", "width", "height"],
"properties": {
"x": { "type": "number", "minimum": 0, "maximum": 10000 },
"y": { "type": "number", "minimum": 0, "maximum": 10000 },
"width": { "type": "number", "minimum": 120, "maximum": 10000 },
"height": { "type": "number", "minimum": 80, "maximum": 10000 }
}
},
"edgeGeometry": {
"type": "object",
"additionalProperties": false,
"required": ["source", "target"],
"properties": {
"source": { "$ref": "#/$defs/port" },
"target": { "$ref": "#/$defs/port" },
"waypoints": {
"type": "array",
"maxItems": 20,
"items": { "$ref": "#/$defs/point" }
},
"label": { "$ref": "#/$defs/point" }
}
}
}
}
