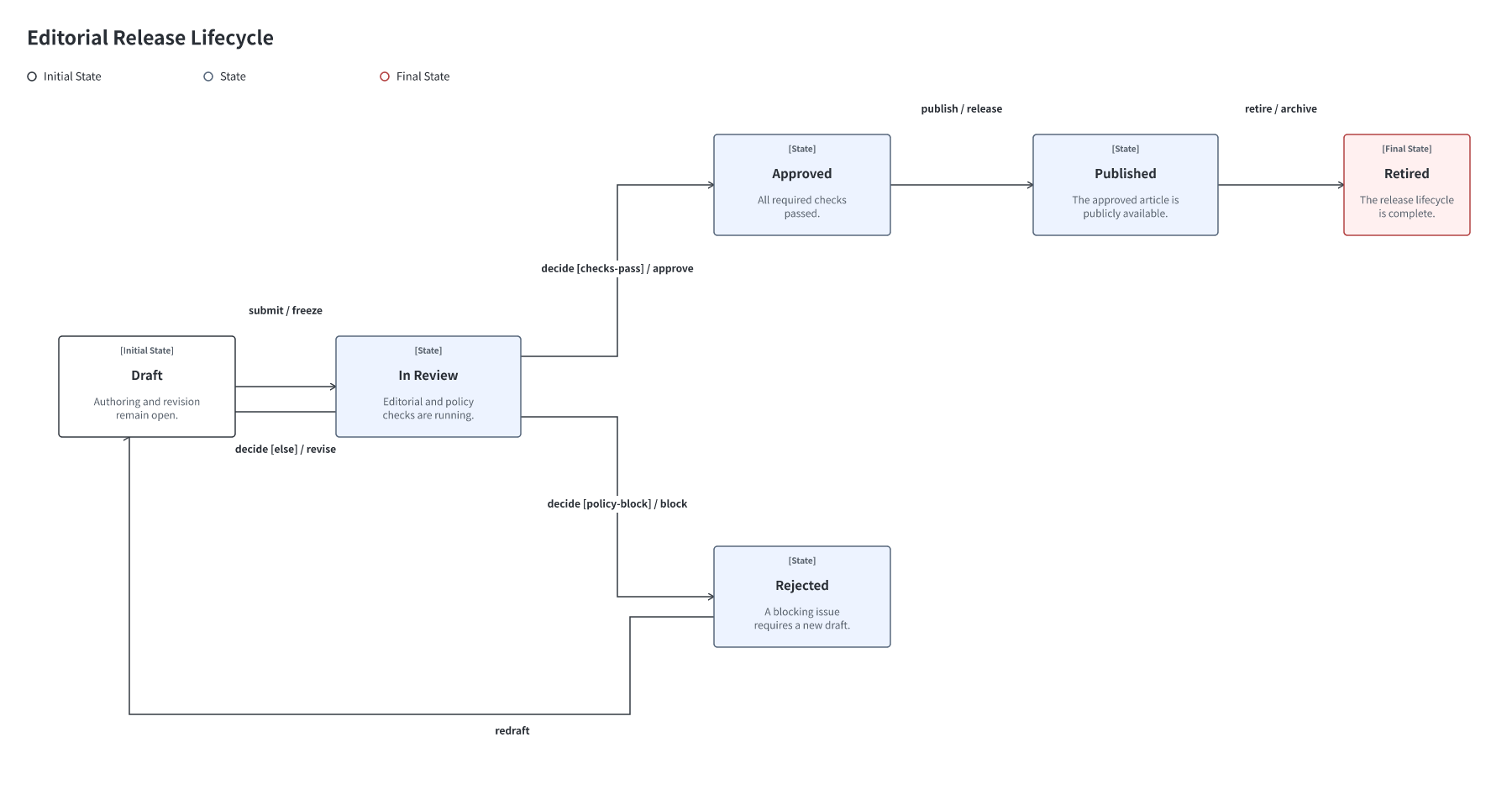

「状態遷移図」の図が要ります。この図はテキストとベクタで公開されているので、絵を描き直すのではなく、公開されているものを取って直すのが早いです。 ## この図が伝えること 対象が取りうる状態と、状態を変える出来事を並べる。 ## 向いている場合 - 初期状態から終了状態まで、到達できない状態が無いかを確かめる。 - event / guard / action の三つ組を明示する。 ## 向かない場合 - 状態が入れ子になるとき。この profile は flat な状態機械に限る。 - 担当者の受け渡しが主題のとき（BPMN-lite を使う）。 ## この図種が検証していること - 初期状態、全状態の到達可能性、終了状態、event / guard / action、分岐の網羅を検証する。 ## 検証していないこと - 実装がこの状態機械に従うかは検査しない。 ## 取れるもの - https://design-vault.pages.dev/designs/diagram-state/samples/state-editorial-release/diagram-spec.json - https://design-vault.pages.dev/designs/diagram-state/samples/state-editorial-release/layout.json - https://design-vault.pages.dev/designs/diagram-state/samples/state-editorial-release/state.drawio - https://design-vault.pages.dev/designs/diagram-state/samples/state-editorial-release/state.png - https://design-vault.pages.dev/designs/diagram-state/samples/state-editorial-release/state.svg - https://design-vault.pages.dev/ai/assets/diagram-state.json ## できる編集 公開された `.drawio` は圧縮されていない XML です。draw.io で開いて直せますし、テキストとして差分も取れます。 この図種がエンジン経由で受け付ける操作: alignNodes, distributeNodes, moveNode, resizeNode この図種は座標の操作だけを受け付けます（意味を変える操作は持ちません）。 ## 新しく書く場合 `diagram-spec.json` は下の schema に沿って書けます。 - https://design-vault.pages.dev/schemas/diagram-spec.schema.json - https://design-vault.pages.dev/schemas/layout.schema.json ## ここでできないこと **書いた spec の検証と `layout.json` の計算はできません。** それを行う生成エンジンは公開されていません。公開されているのは成果物と入力と schema までです。座標を自分で決めるか、エンジンを持っている人に渡してください。 ## ライセンス 図と入力は CC BY 4.0 です。使うときはクレジットを添えてください。 > "State Machine" by zawa, licensed under CC BY 4.0. https://creativecommons.org/licenses/by/4.0/ schema は MIT です。
/designs/diagram-state/samples/state-editorial-release/diagram-spec.json
{
"$schema": "../../../../schemas/diagram-spec.schema.json",
"schemaVersion": "2.0",
"diagramKind": "state",
"id": "editorial-release-state",
"title": "Editorial Release Lifecycle",
"description": "A reachable editorial lifecycle with explicit guarded review outcomes.",
"language": "en",
"initialStateId": "draft",
"nodes": [
{
"id": "draft",
"type": "state",
"title": "Draft",
"description": "Authoring and revision remain open."
},
{
"id": "in-review",
"type": "state",
"title": "In Review",
"description": "Editorial and policy checks are running."
},
{
"id": "approved",
"type": "state",
"title": "Approved",
"description": "All required checks passed."
},
{
"id": "rejected",
"type": "state",
"title": "Rejected",
"description": "A blocking issue requires a new draft."
},
{
"id": "published",
"type": "state",
"title": "Published",
"description": "The approved article is publicly available."
},
{
"id": "retired",
"type": "final-state",
"title": "Retired",
"description": "The release lifecycle is complete."
}
],
"edges": [
{
"id": "submit",
"type": "transition",
"from": "draft",
"to": "in-review",
"event": "submit",
"action": "freeze"
},
{
"id": "approve",
"type": "transition",
"from": "in-review",
"to": "approved",
"event": "decide",
"guard": "checks-pass",
"action": "approve"
},
{
"id": "reject",
"type": "transition",
"from": "in-review",
"to": "rejected",
"event": "decide",
"guard": "policy-block",
"action": "block"
},
{
"id": "revise",
"type": "transition",
"from": "in-review",
"to": "draft",
"event": "decide",
"guard": "else",
"action": "revise"
},
{
"id": "redraft",
"type": "transition",
"from": "rejected",
"to": "draft",
"event": "redraft"
},
{
"id": "publish",
"type": "transition",
"from": "approved",
"to": "published",
"event": "publish",
"action": "release"
},
{
"id": "retire",
"type": "transition",
"from": "published",
"to": "retired",
"event": "retire",
"action": "archive"
}
]
}
/designs/diagram-state/samples/state-editorial-release/layout.json
{
"$schema": "../../../../schemas/layout.schema.json",
"schemaVersion": "1.0",
"canvas": {
"width": 1800,
"height": 940
},
"nodes": {
"draft": {
"x": 70,
"y": 400,
"width": 210,
"height": 120
},
"in-review": {
"x": 400,
"y": 400,
"width": 220,
"height": 120
},
"approved": {
"x": 850,
"y": 160,
"width": 210,
"height": 120
},
"rejected": {
"x": 850,
"y": 650,
"width": 210,
"height": 120
},
"published": {
"x": 1230,
"y": 160,
"width": 220,
"height": 120
},
"retired": {
"x": 1600,
"y": 160,
"width": 150,
"height": 120
}
},
"edges": {
"submit": {
"source": {
"side": "right",
"offset": 0.5
},
"target": {
"side": "left",
"offset": 0.5
},
"label": {
"x": 340,
"y": 370
}
},
"approve": {
"source": {
"side": "right",
"offset": 0.2
},
"target": {
"side": "left",
"offset": 0.5
},
"label": {
"x": 735,
"y": 320
}
},
"reject": {
"source": {
"side": "right",
"offset": 0.8
},
"target": {
"side": "left",
"offset": 0.5
},
"label": {
"x": 735,
"y": 600
}
},
"revise": {
"source": {
"side": "left",
"offset": 0.75
},
"target": {
"side": "right",
"offset": 0.75
},
"label": {
"x": 340,
"y": 535
}
},
"redraft": {
"source": {
"side": "left",
"offset": 0.7
},
"target": {
"side": "bottom",
"offset": 0.4
},
"waypoints": [
{
"x": 750,
"y": 734
},
{
"x": 750,
"y": 850
},
{
"x": 154,
"y": 850
}
],
"label": {
"x": 610,
"y": 870
}
},
"publish": {
"source": {
"side": "right",
"offset": 0.5
},
"target": {
"side": "left",
"offset": 0.5
},
"label": {
"x": 1145,
"y": 130
}
},
"retire": {
"source": {
"side": "right",
"offset": 0.5
},
"target": {
"side": "left",
"offset": 0.5
},
"label": {
"x": 1525,
"y": 130
}
}
}
}
/designs/diagram-state/samples/state-editorial-release/state.drawio
<?xml version="1.0" encoding="UTF-8"?> <mxfile host="app.diagrams.net" compressed="false"> <diagram id="editorial-release-state" name="State Machine" syncFormat="1.0" diagramKind="state" initialStateId="draft" inputHash="4332627ac6844ebba58958d00541ee189835b5780fe891ad5829aa6f659bbd27" generatorVersion="0.7.0"> <mxGraphModel dx="1200" dy="820" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="1800" pageHeight="940" math="0" shadow="0"> <root> <mxCell id="0"/> <mxCell id="1" parent="0"/> <mxCell id="diagram-title" value="Editorial Release Lifecycle" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=23;fontStyle=1;fontColor=#292E35;spacing=0;align=left;verticalAlign=middle;" vertex="1" parent="1"><mxGeometry x="32" y="22" width="720" height="42" as="geometry"/></mxCell> <mxCell id="legend-0-mark" value="" style="ellipse;html=1;aspect=fixed;fillColor=#FFFFFF;strokeColor=#343A42;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="32" y="85" width="10" height="10" as="geometry"/></mxCell> <mxCell id="legend-0-text" value="Initial State" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=13;fontStyle=0;fontColor=#292E35;spacing=0;align=left;verticalAlign=middle;" vertex="1" parent="1"><mxGeometry x="49" y="77" width="170" height="28" as="geometry"/></mxCell> <mxCell id="legend-1-mark" value="" style="ellipse;html=1;aspect=fixed;fillColor=#FFFFFF;strokeColor=#59697D;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="254" y="85" width="10" height="10" as="geometry"/></mxCell> <mxCell id="legend-1-text" value="State" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=13;fontStyle=0;fontColor=#292E35;spacing=0;align=left;verticalAlign=middle;" vertex="1" parent="1"><mxGeometry x="271" y="77" width="170" height="28" as="geometry"/></mxCell> <mxCell id="legend-2-mark" value="" style="ellipse;html=1;aspect=fixed;fillColor=#FFFFFF;strokeColor=#B44343;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="476" y="85" width="10" height="10" as="geometry"/></mxCell> <mxCell id="legend-2-text" value="Final State" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=13;fontStyle=0;fontColor=#292E35;spacing=0;align=left;verticalAlign=middle;" vertex="1" parent="1"><mxGeometry x="493" y="77" width="170" height="28" as="geometry"/></mxCell> <object id="submit" label="" componentId="submit" stateType="edge" stateTransitionType="transition" variant="realtime" direction="forward" event="submit" action="freeze"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.5;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="draft" target="in-review"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <mxCell id="submit--label" value="submit / freeze" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;labelBackgroundColor=#FFFFFF;" vertex="1" parent="1" syncRole="edge-label" ownerId="submit"><mxGeometry x="280.44" y="359" width="119.12" height="22" as="geometry"/></mxCell> <object id="approve" label="" componentId="approve" stateType="edge" stateTransitionType="transition" variant="realtime" direction="forward" event="decide" guard="checks-pass" action="approve"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.2;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="in-review" target="approved"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <mxCell id="approve--label" value="decide [checks-pass] / approve" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;labelBackgroundColor=#FFFFFF;" vertex="1" parent="1" syncRole="edge-label" ownerId="approve"><mxGeometry x="621.26" y="309" width="227.48" height="22" as="geometry"/></mxCell> <object id="reject" label="" componentId="reject" stateType="edge" stateTransitionType="transition" variant="realtime" direction="forward" event="decide" guard="policy-block" action="block"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.8;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="in-review" target="rejected"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <mxCell id="reject--label" value="decide [policy-block] / block" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;labelBackgroundColor=#FFFFFF;" vertex="1" parent="1" syncRole="edge-label" ownerId="reject"><mxGeometry x="624.98" y="589" width="220.04" height="22" as="geometry"/></mxCell> <object id="revise" label="" componentId="revise" stateType="edge" stateTransitionType="transition" variant="realtime" direction="forward" event="decide" guard="else" action="revise"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=0;exitY=0.75;exitDx=0;exitDy=0;exitPerimeter=1;entryX=1;entryY=0.75;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="in-review" target="draft"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <mxCell id="revise--label" value="decide [else] / revise" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;labelBackgroundColor=#FFFFFF;" vertex="1" parent="1" syncRole="edge-label" ownerId="revise"><mxGeometry x="256.02" y="524" width="167.96" height="22" as="geometry"/></mxCell> <object id="redraft" label="" componentId="redraft" stateType="edge" stateTransitionType="transition" variant="realtime" direction="forward" event="redraft"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=0;exitY=0.7;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0.4;entryY=1;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="rejected" target="draft"><mxGeometry relative="1" as="geometry"><Array as="points"><mxPoint x="750" y="734"/><mxPoint x="750" y="850"/><mxPoint x="154" y="850"/></Array></mxGeometry></mxCell></object> <mxCell id="redraft--label" value="redraft" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;labelBackgroundColor=#FFFFFF;" vertex="1" parent="1" syncRole="edge-label" ownerId="redraft"><mxGeometry x="576.96" y="859" width="66.08" height="22" as="geometry"/></mxCell> <object id="publish" label="" componentId="publish" stateType="edge" stateTransitionType="transition" variant="realtime" direction="forward" event="publish" action="release"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.5;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="approved" target="published"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <mxCell id="publish--label" value="publish / release" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;labelBackgroundColor=#FFFFFF;" vertex="1" parent="1" syncRole="edge-label" ownerId="publish"><mxGeometry x="1078" y="119" width="134" height="22" as="geometry"/></mxCell> <object id="retire" label="" componentId="retire" stateType="edge" stateTransitionType="transition" variant="realtime" direction="forward" event="retire" action="archive"><mxCell style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;strokeColor=#343A42;strokeWidth=1.6;endArrow=open;endFill=0;endSize=8;startArrow=none;exitX=1;exitY=0.5;exitDx=0;exitDy=0;exitPerimeter=1;entryX=0;entryY=0.5;entryDx=0;entryDy=0;entryPerimeter=1;" edge="1" parent="1" source="published" target="retired"><mxGeometry relative="1" as="geometry"></mxGeometry></mxCell></object> <mxCell id="retire--label" value="retire / archive" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=1;fontColor=#292E35;spacing=0;labelBackgroundColor=#FFFFFF;" vertex="1" parent="1" syncRole="edge-label" ownerId="retire"><mxGeometry x="1461.72" y="119" width="126.56" height="22" as="geometry"/></mxCell> <object id="draft" label="" componentId="draft" stateType="state" variant="realtime"><mxCell style="rounded=1;arcSize=4;whiteSpace=wrap;html=1;fillColor=#FFFFFF;strokeColor=#343A42;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="70" y="400" width="210" height="120" as="geometry"/></mxCell></object> <mxCell id="draft--stereotype" value="[Initial State]" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=10;fontStyle=1;fontColor=#58616C;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="draft" syncRole="stereotype" ownerId="draft"><mxGeometry x="10" y="9" width="190" height="18" as="geometry"/></mxCell> <mxCell id="draft--title" value="Draft" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=15;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="draft" syncRole="title" ownerId="draft"><mxGeometry x="10" y="31" width="190" height="28" as="geometry"/></mxCell> <mxCell id="draft--description" value="Authoring and revision remain open." style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=0;fontColor=#58616C;spacing=0;align=center;verticalAlign=top;" vertex="1" parent="draft" syncRole="description" ownerId="draft"><mxGeometry x="14" y="65" width="182" height="45" as="geometry"/></mxCell> <object id="in-review" label="" componentId="in-review" stateType="state" variant="delegated"><mxCell style="rounded=1;arcSize=4;whiteSpace=wrap;html=1;fillColor=#EDF3FF;strokeColor=#59697D;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="400" y="400" width="220" height="120" as="geometry"/></mxCell></object> <mxCell id="in-review--stereotype" value="[State]" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=10;fontStyle=1;fontColor=#58616C;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="in-review" syncRole="stereotype" ownerId="in-review"><mxGeometry x="10" y="9" width="200" height="18" as="geometry"/></mxCell> <mxCell id="in-review--title" value="In Review" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=15;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="in-review" syncRole="title" ownerId="in-review"><mxGeometry x="10" y="31" width="200" height="28" as="geometry"/></mxCell> <mxCell id="in-review--description" value="Editorial and policy checks are running." style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=0;fontColor=#58616C;spacing=0;align=center;verticalAlign=top;" vertex="1" parent="in-review" syncRole="description" ownerId="in-review"><mxGeometry x="14" y="65" width="192" height="45" as="geometry"/></mxCell> <object id="approved" label="" componentId="approved" stateType="state" variant="delegated"><mxCell style="rounded=1;arcSize=4;whiteSpace=wrap;html=1;fillColor=#EDF3FF;strokeColor=#59697D;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="850" y="160" width="210" height="120" as="geometry"/></mxCell></object> <mxCell id="approved--stereotype" value="[State]" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=10;fontStyle=1;fontColor=#58616C;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="approved" syncRole="stereotype" ownerId="approved"><mxGeometry x="10" y="9" width="190" height="18" as="geometry"/></mxCell> <mxCell id="approved--title" value="Approved" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=15;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="approved" syncRole="title" ownerId="approved"><mxGeometry x="10" y="31" width="190" height="28" as="geometry"/></mxCell> <mxCell id="approved--description" value="All required checks passed." style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=0;fontColor=#58616C;spacing=0;align=center;verticalAlign=top;" vertex="1" parent="approved" syncRole="description" ownerId="approved"><mxGeometry x="14" y="65" width="182" height="45" as="geometry"/></mxCell> <object id="rejected" label="" componentId="rejected" stateType="state" variant="delegated"><mxCell style="rounded=1;arcSize=4;whiteSpace=wrap;html=1;fillColor=#EDF3FF;strokeColor=#59697D;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="850" y="650" width="210" height="120" as="geometry"/></mxCell></object> <mxCell id="rejected--stereotype" value="[State]" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=10;fontStyle=1;fontColor=#58616C;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="rejected" syncRole="stereotype" ownerId="rejected"><mxGeometry x="10" y="9" width="190" height="18" as="geometry"/></mxCell> <mxCell id="rejected--title" value="Rejected" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=15;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="rejected" syncRole="title" ownerId="rejected"><mxGeometry x="10" y="31" width="190" height="28" as="geometry"/></mxCell> <mxCell id="rejected--description" value="A blocking issue requires a new draft." style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=0;fontColor=#58616C;spacing=0;align=center;verticalAlign=top;" vertex="1" parent="rejected" syncRole="description" ownerId="rejected"><mxGeometry x="14" y="65" width="182" height="45" as="geometry"/></mxCell> <object id="published" label="" componentId="published" stateType="state" variant="delegated"><mxCell style="rounded=1;arcSize=4;whiteSpace=wrap;html=1;fillColor=#EDF3FF;strokeColor=#59697D;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="1230" y="160" width="220" height="120" as="geometry"/></mxCell></object> <mxCell id="published--stereotype" value="[State]" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=10;fontStyle=1;fontColor=#58616C;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="published" syncRole="stereotype" ownerId="published"><mxGeometry x="10" y="9" width="200" height="18" as="geometry"/></mxCell> <mxCell id="published--title" value="Published" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=15;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="published" syncRole="title" ownerId="published"><mxGeometry x="10" y="31" width="200" height="28" as="geometry"/></mxCell> <mxCell id="published--description" value="The approved article is publicly available." style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=0;fontColor=#58616C;spacing=0;align=center;verticalAlign=top;" vertex="1" parent="published" syncRole="description" ownerId="published"><mxGeometry x="14" y="65" width="192" height="45" as="geometry"/></mxCell> <object id="retired" label="" componentId="retired" stateType="final-state" variant="critical"><mxCell style="rounded=1;arcSize=4;whiteSpace=wrap;html=1;fillColor=#FFF0F0;strokeColor=#B44343;strokeWidth=1.6;" vertex="1" parent="1"><mxGeometry x="1600" y="160" width="150" height="120" as="geometry"/></mxCell></object> <mxCell id="retired--stereotype" value="[Final State]" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=10;fontStyle=1;fontColor=#58616C;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="retired" syncRole="stereotype" ownerId="retired"><mxGeometry x="10" y="9" width="130" height="18" as="geometry"/></mxCell> <mxCell id="retired--title" value="Retired" style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=15;fontStyle=1;fontColor=#292E35;spacing=0;align=center;verticalAlign=middle;" vertex="1" parent="retired" syncRole="title" ownerId="retired"><mxGeometry x="10" y="31" width="130" height="28" as="geometry"/></mxCell> <mxCell id="retired--description" value="The release lifecycle is complete." style="text;html=1;strokeColor=none;fillColor=none;whiteSpace=wrap;rounded=0;fontFamily=Meiryo UI;fontSize=12;fontStyle=0;fontColor=#58616C;spacing=0;align=center;verticalAlign=top;" vertex="1" parent="retired" syncRole="description" ownerId="retired"><mxGeometry x="14" y="65" width="122" height="45" as="geometry"/></mxCell> </root> </mxGraphModel> </diagram> </mxfile>
/schemas/diagram-spec.schema.json — 大きいのでファイルで渡す（コピーは 32KB まで）
{
"$schema": "https://json-schema.org/draft/2020-12/schema",
"$id": "https://example.local/schemas/diagram-spec.schema.json",
"title": "Editorial diagram semantic specification",
"oneOf": [
{ "$ref": "#/$defs/legacyArchitectureSpec" },
{ "$ref": "#/$defs/architectureSpec" },
{ "$ref": "#/$defs/c4SystemContextSpec" },
{ "$ref": "#/$defs/c4ContainerSpec" },
{ "$ref": "#/$defs/dataFlowSpec" },
{ "$ref": "#/$defs/deploymentSpec" },
{ "$ref": "#/$defs/bpmnLiteSpec" },
{ "$ref": "#/$defs/sequenceSpec" },
{ "$ref": "#/$defs/erSpec" },
{ "$ref": "#/$defs/stateSpec" },
{ "$ref": "#/$defs/decisionTreeSpec" },
{ "$ref": "#/$defs/timelineSpec" },
{ "$ref": "#/$defs/roadmapSpec" },
{ "$ref": "#/$defs/capabilityMapSpec" },
{ "$ref": "#/$defs/executiveViewSpec" }
],
"$defs": {
"baseSpec": {
"type": "object",
"required": ["schemaVersion", "id", "title", "language", "legend", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "type": "string" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"legend": {
"type": "array",
"maxItems": 8,
"items": {
"type": "object",
"additionalProperties": false,
"required": ["label", "variant"],
"properties": {
"label": { "type": "string", "minLength": 1, "maxLength": 60 },
"variant": { "$ref": "#/$defs/variant" }
}
}
},
"boundaries": {
"type": "array",
"maxItems": 50,
"items": { "$ref": "#/$defs/boundary" }
},
"nodes": {
"type": "array",
"minItems": 1,
"items": { "$ref": "#/$defs/node" }
},
"edges": {
"type": "array",
"items": { "$ref": "#/$defs/edge" }
}
}
},
"legacyArchitectureSpec": {
"type": "object",
"allOf": [
{ "$ref": "#/$defs/baseSpec" },
{
"type": "object",
"properties": {
"schemaVersion": { "const": "1.0" }
}
}
],
"unevaluatedProperties": false
},
"architectureSpec": {
"type": "object",
"allOf": [
{ "$ref": "#/$defs/baseSpec" },
{
"type": "object",
"required": ["diagramKind"],
"properties": {
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "architecture" }
}
}
],
"unevaluatedProperties": false
},
"c4SystemContextSpec": {
"type": "object",
"additionalProperties": false,
"required": [
"schemaVersion", "diagramKind", "id", "title", "language", "scopeSystemId",
"scopeBoundaryId", "boundaries", "nodes", "edges"
],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "c4-system-context" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"scopeSystemId": { "$ref": "#/$defs/id" },
"scopeBoundaryId": { "$ref": "#/$defs/id" },
"boundaries": {
"type": "array",
"minItems": 1,
"maxItems": 8,
"items": { "$ref": "#/$defs/c4SystemBoundary" }
},
"nodes": {
"type": "array",
"minItems": 2,
"maxItems": 50,
"items": { "$ref": "#/$defs/c4Element" }
},
"edges": {
"type": "array",
"minItems": 1,
"maxItems": 100,
"items": { "$ref": "#/$defs/c4Relationship" }
}
}
},
"c4SystemBoundary": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "system-boundary" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"c4Element": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["person", "software-system", "external-system"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"c4Relationship": {
"type": "object",
"additionalProperties": false,
"required": ["id", "from", "to", "type", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"type": { "const": "relationship" },
"description": { "type": "string", "minLength": 3, "maxLength": 160 },
"technology": { "type": "string", "minLength": 1, "maxLength": 64 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"c4ContainerSpec": {
"type": "object",
"additionalProperties": false,
"required": [
"schemaVersion", "diagramKind", "id", "title", "language", "contextDiagramId",
"scopeSystemId", "scopeBoundaryId", "boundaries", "nodes", "edges"
],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "c4-container" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"contextDiagramId": { "$ref": "#/$defs/id" },
"scopeSystemId": { "$ref": "#/$defs/id" },
"scopeBoundaryId": { "$ref": "#/$defs/id" },
"boundaries": {
"type": "array",
"minItems": 1,
"maxItems": 8,
"items": { "$ref": "#/$defs/c4SystemBoundary" }
},
"nodes": {
"type": "array",
"minItems": 1,
"maxItems": 80,
"items": { "$ref": "#/$defs/c4ContainerElement" }
},
"edges": {
"type": "array",
"minItems": 1,
"maxItems": 160,
"items": { "$ref": "#/$defs/c4Relationship" }
}
}
},
"c4ContainerElement": {
"oneOf": [
{ "$ref": "#/$defs/c4ContainerPrimary" },
{ "$ref": "#/$defs/c4ContainerSupportingElement" }
]
},
"c4ContainerPrimary": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "containerKind", "title", "description", "technology"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "container" },
"containerKind": { "enum": ["application", "data-store"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"technology": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"c4ContainerSupportingElement": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["person", "external-system"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"bpmnLiteSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "pool", "lanes", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "bpmn-lite" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"pool": { "$ref": "#/$defs/bpmnPool" },
"lanes": {
"type": "array",
"minItems": 2,
"maxItems": 16,
"items": { "$ref": "#/$defs/bpmnLane" }
},
"nodes": {
"type": "array",
"minItems": 4,
"maxItems": 160,
"items": { "$ref": "#/$defs/bpmnFlowNode" }
},
"edges": {
"type": "array",
"minItems": 3,
"maxItems": 320,
"items": { "$ref": "#/$defs/bpmnSequenceFlow" }
}
}
},
"bpmnPool": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "pool" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"bpmnLane": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "lane" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"bpmnFlowNode": {
"oneOf": [
{ "$ref": "#/$defs/bpmnSimpleFlowNode" },
{ "$ref": "#/$defs/bpmnGateway" }
]
},
"bpmnSimpleFlowNode": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "laneId"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["start-event", "end-event", "task"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"laneId": { "$ref": "#/$defs/id" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"bpmnGateway": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "laneId", "gatewayRole"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["exclusive-gateway", "parallel-gateway"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"laneId": { "$ref": "#/$defs/id" },
"gatewayRole": { "enum": ["split", "join"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"bpmnSequenceFlow": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "sequence-flow" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"condition": { "type": "string", "minLength": 1, "maxLength": 160 },
"isDefault": { "type": "boolean" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"sequenceSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "nodes", "fragments", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "sequence" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"nodes": { "type": "array", "minItems": 2, "maxItems": 32, "items": { "$ref": "#/$defs/sequenceLifeline" } },
"fragments": { "type": "array", "maxItems": 24, "items": { "$ref": "#/$defs/sequenceFragment" } },
"edges": { "type": "array", "minItems": 1, "maxItems": 320, "items": { "$ref": "#/$defs/sequenceMessage" } }
}
},
"sequenceLifeline": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "occurrenceIds"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "lifeline" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"occurrenceIds": { "type": "array", "minItems": 1, "maxItems": 320, "uniqueItems": true, "items": { "$ref": "#/$defs/id" } },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"sequenceFragment": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "operator", "title", "operands"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "combined-fragment" },
"operator": { "enum": ["alt", "opt", "par"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"operands": { "type": "array", "minItems": 1, "maxItems": 8, "items": { "$ref": "#/$defs/sequenceOperand" } },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"sequenceOperand": {
"type": "object",
"additionalProperties": false,
"required": ["id", "occurrenceIds"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"guard": { "type": "string", "minLength": 1, "maxLength": 120 },
"occurrenceIds": { "type": "array", "minItems": 1, "maxItems": 160, "uniqueItems": true, "items": { "$ref": "#/$defs/id" } }
}
},
"sequenceMessage": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to", "title", "sendOccurrenceId", "receiveOccurrenceId"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["sync-message", "async-message", "return-message"] },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"sendOccurrenceId": { "$ref": "#/$defs/id" },
"receiveOccurrenceId": { "$ref": "#/$defs/id" },
"replyTo": { "$ref": "#/$defs/id" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"erSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "er" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"nodes": { "type": "array", "minItems": 2, "maxItems": 120, "items": { "$ref": "#/$defs/erEntity" } },
"edges": { "type": "array", "maxItems": 240, "items": { "$ref": "#/$defs/erForeignKey" } }
}
},
"erEntity": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "attributes", "primaryKey", "uniqueKeys"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "entity" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"attributes": { "type": "array", "minItems": 1, "maxItems": 80, "items": { "$ref": "#/$defs/erAttribute" } },
"primaryKey": { "$ref": "#/$defs/erKey" },
"uniqueKeys": { "type": "array", "maxItems": 24, "items": { "$ref": "#/$defs/erKey" } },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"erAttribute": {
"type": "object",
"additionalProperties": false,
"required": ["id", "name", "dataType", "nullable"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"name": { "type": "string", "minLength": 1, "maxLength": 80 },
"dataType": { "type": "string", "minLength": 1, "maxLength": 80 },
"nullable": { "type": "boolean" }
}
},
"erKey": {
"type": "object",
"additionalProperties": false,
"required": ["id", "attributeIds"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"attributeIds": { "type": "array", "maxItems": 16, "items": { "$ref": "#/$defs/id" } }
}
},
"erForeignKey": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to", "fromAttributeIds", "toAttributeIds", "fromCardinality", "toCardinality", "identifying"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "foreign-key" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"fromAttributeIds": { "type": "array", "maxItems": 16, "items": { "$ref": "#/$defs/id" } },
"toAttributeIds": { "type": "array", "maxItems": 16, "items": { "$ref": "#/$defs/id" } },
"fromCardinality": { "$ref": "#/$defs/erCardinality" },
"toCardinality": { "$ref": "#/$defs/erCardinality" },
"identifying": { "type": "boolean" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"erCardinality": { "enum": ["zero-or-one", "one", "zero-or-many", "one-or-many"] },
"stateSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "initialStateId", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "state" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"initialStateId": { "$ref": "#/$defs/id" },
"nodes": { "type": "array", "minItems": 2, "maxItems": 120, "items": { "$ref": "#/$defs/stateNode" } },
"edges": { "type": "array", "minItems": 1, "maxItems": 240, "items": { "$ref": "#/$defs/stateTransition" } }
}
},
"stateNode": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["state", "final-state"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"stateTransition": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to", "event"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "transition" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"event": { "type": "string", "minLength": 1, "maxLength": 120 },
"guard": { "type": "string", "minLength": 1, "maxLength": 160 },
"action": { "type": "string", "minLength": 1, "maxLength": 160 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"decisionTreeSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "rootNodeId", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "decision-tree" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"rootNodeId": { "$ref": "#/$defs/id" },
"nodes": { "type": "array", "minItems": 3, "maxItems": 160, "items": { "$ref": "#/$defs/decisionTreeNode" } },
"edges": { "type": "array", "minItems": 2, "maxItems": 320, "items": { "$ref": "#/$defs/decisionBranch" } }
}
},
"decisionTreeNode": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["decision", "outcome"] },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"decisionBranch": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to", "isDefault"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "branch" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"condition": { "type": "string", "minLength": 1, "maxLength": 160 },
"isDefault": { "type": "boolean" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"timelineSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "windowStart", "windowEnd", "workstreams", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "timeline" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"windowStart": { "$ref": "#/$defs/isoDate" },
"windowEnd": { "$ref": "#/$defs/isoDate" },
"workstreams": { "type": "array", "minItems": 1, "maxItems": 6, "items": { "$ref": "#/$defs/timelineWorkstream" } },
"nodes": { "type": "array", "minItems": 1, "maxItems": 40, "items": { "$ref": "#/$defs/timelineItem" } },
"edges": { "type": "array", "maxItems": 80, "items": { "$ref": "#/$defs/timelineDependency" } }
}
},
"timelineWorkstream": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "workstream" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"timelineItem": {
"oneOf": [
{ "$ref": "#/$defs/timelineTask" },
{ "$ref": "#/$defs/timelineMilestone" }
]
},
"timelineTask": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "workstreamId", "startDate", "endDate", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "task" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"workstreamId": { "$ref": "#/$defs/id" },
"startDate": { "$ref": "#/$defs/isoDate" },
"endDate": { "$ref": "#/$defs/isoDate" },
"status": { "$ref": "#/$defs/timelineStatus" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"timelineMilestone": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "workstreamId", "date", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "milestone" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"workstreamId": { "$ref": "#/$defs/id" },
"date": { "$ref": "#/$defs/isoDate" },
"status": { "$ref": "#/$defs/timelineStatus" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"timelineDependency": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "from", "to"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "finish-to-start" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"timelineStatus": { "enum": ["planned", "active", "blocked", "done"] },
"isoDate": { "type": "string", "pattern": "^[0-9]{4}-[0-9]{2}-[0-9]{2}$" },
"roadmapSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "vision", "horizons", "themes", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "roadmap" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"vision": { "type": "string", "minLength": 8, "maxLength": 180 },
"horizons": { "type": "array", "minItems": 3, "maxItems": 3, "items": { "$ref": "#/$defs/roadmapHorizon" } },
"themes": { "type": "array", "minItems": 1, "maxItems": 5, "items": { "$ref": "#/$defs/roadmapTheme" } },
"nodes": { "type": "array", "minItems": 1, "maxItems": 24, "items": { "$ref": "#/$defs/roadmapInitiative" } },
"edges": { "type": "array", "maxItems": 0 }
}
},
"roadmapHorizon": {
"type": "object",
"additionalProperties": false,
"required": ["id", "kind", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"kind": { "enum": ["now", "next", "later"] },
"title": { "type": "string", "minLength": 1, "maxLength": 40 },
"description": { "type": "string", "minLength": 3, "maxLength": 120 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"roadmapTheme": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "theme" },
"title": { "type": "string", "minLength": 1, "maxLength": 60 },
"description": { "type": "string", "minLength": 3, "maxLength": 160 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"roadmapInitiative": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "outcome", "themeId", "horizonId", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "initiative" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 200 },
"outcome": { "type": "string", "minLength": 8, "maxLength": 220 },
"themeId": { "$ref": "#/$defs/id" },
"horizonId": { "$ref": "#/$defs/id" },
"status": { "enum": ["exploring", "planned", "active", "delivered"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"capabilityMapSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "scope", "domains", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "capability-map" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"scope": { "type": "string", "minLength": 8, "maxLength": 220 },
"domains": { "type": "array", "minItems": 2, "maxItems": 6, "items": { "$ref": "#/$defs/capabilityDomain" } },
"nodes": { "type": "array", "minItems": 2, "maxItems": 30, "items": { "$ref": "#/$defs/capability" } },
"edges": { "type": "array", "maxItems": 0 }
}
},
"capabilityDomain": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "domain" },
"title": { "type": "string", "minLength": 1, "maxLength": 60 },
"description": { "type": "string", "minLength": 3, "maxLength": 160 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"capability": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "domainId", "strategicImportance"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "capability" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 200 },
"domainId": { "$ref": "#/$defs/id" },
"strategicImportance": { "enum": ["low", "medium", "high"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"executiveViewSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "asOfDate", "objective", "recommendation", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "executive-view" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"asOfDate": { "$ref": "#/$defs/isoDate" },
"objective": { "type": "string", "minLength": 8, "maxLength": 220 },
"recommendation": { "type": "string", "minLength": 8, "maxLength": 240 },
"nodes": { "type": "array", "minItems": 4, "maxItems": 13, "items": { "$ref": "#/$defs/executiveItem" } },
"edges": { "type": "array", "maxItems": 0 }
}
},
"executiveItem": {
"oneOf": [
{ "$ref": "#/$defs/executiveIndicator" },
{ "$ref": "#/$defs/executiveRisk" },
{ "$ref": "#/$defs/executiveDecision" }
]
},
"executiveIndicator": {
"type": "object", "additionalProperties": false,
"required": ["id", "type", "title", "description", "value", "target", "trend", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" }, "type": { "const": "indicator" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 200 },
"value": { "type": "string", "minLength": 1, "maxLength": 60 },
"target": { "type": "string", "minLength": 1, "maxLength": 60 },
"trend": { "enum": ["improving", "steady", "declining"] },
"status": { "enum": ["on-track", "at-risk", "off-track"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"executiveRisk": {
"type": "object", "additionalProperties": false,
"required": ["id", "type", "title", "description", "impact", "response", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" }, "type": { "const": "risk" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 200 },
"impact": { "enum": ["low", "medium", "high"] },
"response": { "type": "string", "minLength": 3, "maxLength": 220 },
"status": { "enum": ["open", "watch", "mitigated"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"executiveDecision": {
"type": "object", "additionalProperties": false,
"required": ["id", "type", "title", "description", "recommendation", "status"],
"properties": {
"id": { "$ref": "#/$defs/id" }, "type": { "const": "decision" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 200 },
"recommendation": { "type": "string", "minLength": 3, "maxLength": 220 },
"status": { "enum": ["open", "approved", "deferred"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataFlowSpec": {
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "diagramKind", "id", "title", "language", "boundaries", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "data-flow" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"boundaries": {
"type": "array",
"maxItems": 32,
"items": { "$ref": "#/$defs/dataFlowTrustBoundary" }
},
"nodes": {
"type": "array",
"minItems": 2,
"maxItems": 120,
"items": { "$ref": "#/$defs/dataFlowNode" }
},
"edges": {
"type": "array",
"minItems": 1,
"maxItems": 240,
"items": { "$ref": "#/$defs/dataFlowEdge" }
}
}
},
"dataFlowTrustBoundary": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "trustLevel"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "trust-boundary" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"trustLevel": { "enum": ["external", "controlled", "restricted"] },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataFlowNode": {
"oneOf": [
{ "$ref": "#/$defs/dataFlowSimpleNode" },
{ "$ref": "#/$defs/dataFlowProcess" },
{ "$ref": "#/$defs/dataFlowDataStore" }
]
},
"dataFlowSimpleNode": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["source", "sink", "external-system"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataFlowProcess": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "transformation"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "process" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"transformation": { "type": "string", "minLength": 3, "maxLength": 160 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataFlowDataStore": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "classification"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "data-store" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"classification": { "$ref": "#/$defs/dataClassification" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataFlowEdge": {
"type": "object",
"additionalProperties": false,
"required": ["id", "from", "to", "type", "dataName", "format", "frequency", "mode", "classification"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"type": { "const": "data-flow" },
"dataName": { "type": "string", "minLength": 1, "maxLength": 100 },
"format": { "type": "string", "minLength": 1, "maxLength": 80 },
"frequency": { "type": "string", "minLength": 1, "maxLength": 80 },
"mode": { "enum": ["batch", "streaming", "request-response"] },
"classification": { "$ref": "#/$defs/dataClassification" },
"trustBoundaryIds": {
"type": "array",
"maxItems": 32,
"uniqueItems": true,
"items": { "$ref": "#/$defs/id" }
},
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"dataClassification": { "enum": ["public", "internal", "confidential", "restricted"] },
"deploymentSpec": {
"type": "object",
"additionalProperties": false,
"required": [
"schemaVersion", "diagramKind", "id", "title", "language", "environment",
"entryNodeIds", "boundaries", "nodes", "edges"
],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "2.0" },
"diagramKind": { "const": "deployment" },
"id": { "$ref": "#/$defs/id" },
"title": { "type": "string", "minLength": 1, "maxLength": 120 },
"description": { "type": "string", "maxLength": 500 },
"language": { "enum": ["en", "ja", "mixed"] },
"metadata": { "$ref": "#/$defs/metadata" },
"environment": { "type": "string", "minLength": 1, "maxLength": 80 },
"entryNodeIds": {
"type": "array",
"minItems": 1,
"maxItems": 32,
"uniqueItems": true,
"items": { "$ref": "#/$defs/id" }
},
"boundaries": {
"type": "array",
"minItems": 4,
"maxItems": 64,
"items": { "$ref": "#/$defs/deploymentBoundary" }
},
"nodes": {
"type": "array",
"minItems": 2,
"maxItems": 160,
"items": { "$ref": "#/$defs/deploymentNode" }
},
"edges": {
"type": "array",
"minItems": 1,
"maxItems": 320,
"items": { "$ref": "#/$defs/deploymentCommunication" }
}
}
},
"deploymentBoundary": {
"oneOf": [
{ "$ref": "#/$defs/deploymentCloudProvider" },
{ "$ref": "#/$defs/deploymentRegion" },
{ "$ref": "#/$defs/deploymentNetworkBoundary" }
]
},
"deploymentCloudProvider": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "cloud-provider" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"deploymentRegion": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "parentId"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "region" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"parentId": { "$ref": "#/$defs/id" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"deploymentNetworkBoundary": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "parentId", "exposure"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["network", "subnet"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"parentId": { "$ref": "#/$defs/id" },
"exposure": { "$ref": "#/$defs/networkExposure" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"deploymentNode": {
"oneOf": [
{ "$ref": "#/$defs/deploymentExternalSystem" },
{ "$ref": "#/$defs/deploymentManagedNode" }
]
},
"deploymentExternalSystem": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "technology", "exposure"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "const": "external-system" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"technology": { "type": "string", "minLength": 1, "maxLength": 100 },
"exposure": { "const": "public" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"deploymentManagedNode": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "title", "description", "technology", "exposure", "boundaryId"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["gateway", "load-balancer", "firewall", "host", "service", "database"] },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"description": { "type": "string", "minLength": 3, "maxLength": 240 },
"technology": { "type": "string", "minLength": 1, "maxLength": 100 },
"exposure": { "$ref": "#/$defs/networkExposure" },
"boundaryId": { "$ref": "#/$defs/id" },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"deploymentCommunication": {
"type": "object",
"additionalProperties": false,
"required": ["id", "from", "to", "type", "description", "protocol", "port"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"type": { "const": "communication" },
"description": { "type": "string", "minLength": 3, "maxLength": 160 },
"protocol": { "type": "string", "minLength": 1, "maxLength": 40 },
"port": { "type": "integer", "minimum": 1, "maximum": 65535 },
"boundaryIds": {
"type": "array",
"maxItems": 64,
"uniqueItems": true,
"items": { "$ref": "#/$defs/id" }
},
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"networkExposure": { "enum": ["public", "private", "restricted"] },
"id": { "type": "string", "pattern": "^[a-z][a-z0-9-]{1,63}$" },
"variant": { "enum": ["realtime", "delegated", "external", "warning", "critical"] },
"status": { "enum": ["planned", "experimental", "beta", "stable", "deprecated", "retired"] },
"metadata": {
"type": "object",
"additionalProperties": { "type": "string", "maxLength": 200 }
},
"boundary": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "variant", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": { "enum": ["system", "network", "trust", "organization", "runtime"] },
"variant": { "$ref": "#/$defs/variant" },
"title": { "type": "string", "minLength": 1, "maxLength": 80 },
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"node": {
"type": "object",
"additionalProperties": false,
"required": ["id", "type", "variant", "status", "title"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"type": {
"enum": [
"actor", "client", "frontend", "backend", "api", "service", "model", "agent",
"tool", "database", "cache", "queue", "event-bus", "storage", "batch-job",
"external-service", "observability", "security", "network", "note"
]
},
"variant": { "$ref": "#/$defs/variant" },
"status": { "$ref": "#/$defs/status" },
"title": { "type": "string", "minLength": 1, "maxLength": 60 },
"subtitle": { "type": "string", "maxLength": 100 },
"icon": { "$ref": "#/$defs/id" },
"controls": {
"type": "array",
"maxItems": 8,
"items": { "type": "string", "minLength": 1, "maxLength": 32 }
},
"metadata": { "$ref": "#/$defs/metadata" }
}
},
"edge": {
"type": "object",
"additionalProperties": false,
"required": ["id", "from", "to", "type", "variant", "direction"],
"properties": {
"id": { "$ref": "#/$defs/id" },
"from": { "$ref": "#/$defs/id" },
"to": { "$ref": "#/$defs/id" },
"type": {
"enum": [
"sync-request", "async-request", "realtime-stream", "event", "batch", "data-read",
"data-write", "control", "monitoring", "authentication"
]
},
"variant": { "$ref": "#/$defs/variant" },
"label": { "type": "string", "maxLength": 80 },
"direction": { "enum": ["forward", "bidirectional"] },
"protocol": { "type": "string", "maxLength": 32 },
"metadata": { "$ref": "#/$defs/metadata" }
}
}
}
}
{
"$schema": "https://json-schema.org/draft/2020-12/schema",
"$id": "https://example.local/schemas/layout.schema.json",
"title": "Architecture diagram layout",
"type": "object",
"additionalProperties": false,
"required": ["schemaVersion", "canvas", "nodes", "edges"],
"properties": {
"$schema": { "type": "string" },
"schemaVersion": { "const": "1.0" },
"canvas": {
"type": "object",
"additionalProperties": false,
"required": ["width", "height"],
"properties": {
"width": { "type": "integer", "minimum": 320, "maximum": 10000 },
"height": { "type": "integer", "minimum": 240, "maximum": 10000 }
}
},
"boundaries": {
"type": "object",
"additionalProperties": { "$ref": "#/$defs/boundaryGeometry" }
},
"nodes": {
"type": "object",
"additionalProperties": { "$ref": "#/$defs/nodeGeometry" }
},
"edges": {
"type": "object",
"additionalProperties": { "$ref": "#/$defs/edgeGeometry" }
}
},
"$defs": {
"point": {
"type": "object",
"additionalProperties": false,
"required": ["x", "y"],
"properties": {
"x": { "type": "number", "minimum": 0, "maximum": 10000 },
"y": { "type": "number", "minimum": 0, "maximum": 10000 }
}
},
"port": {
"type": "object",
"additionalProperties": false,
"required": ["side", "offset"],
"properties": {
"side": { "enum": ["top", "right", "bottom", "left"] },
"offset": { "type": "number", "minimum": 0, "maximum": 1 }
}
},
"nodeGeometry": {
"type": "object",
"additionalProperties": false,
"required": ["x", "y", "width", "height"],
"properties": {
"x": { "type": "number", "minimum": 0, "maximum": 10000 },
"y": { "type": "number", "minimum": 0, "maximum": 10000 },
"width": { "type": "number", "minimum": 40, "maximum": 3000 },
"height": { "type": "number", "minimum": 30, "maximum": 3000 }
}
},
"boundaryGeometry": {
"type": "object",
"additionalProperties": false,
"required": ["x", "y", "width", "height"],
"properties": {
"x": { "type": "number", "minimum": 0, "maximum": 10000 },
"y": { "type": "number", "minimum": 0, "maximum": 10000 },
"width": { "type": "number", "minimum": 120, "maximum": 10000 },
"height": { "type": "number", "minimum": 80, "maximum": 10000 }
}
},
"edgeGeometry": {
"type": "object",
"additionalProperties": false,
"required": ["source", "target"],
"properties": {
"source": { "$ref": "#/$defs/port" },
"target": { "$ref": "#/$defs/port" },
"waypoints": {
"type": "array",
"maxItems": 20,
"items": { "$ref": "#/$defs/point" }
},
"label": { "$ref": "#/$defs/point" }
}
}
}
}
